Industrial-scale 3D volumetric precast systems
From hydraulic 3D box moulds to heavy-duty handling and controlled curing. Build a coordinated production system around your module design, output targets and project standards.
Dimensional control defined for your module.
Controlled release with less manual dismantling.
Design review for BCA PPVC and Hong Kong MiC.
Layout, fabrication, commissioning and training.
A three-dimensional module brings a different set of demands: spatial accuracy, safe release and coordinated heavy-load movement.
Pieced formwork can accumulate dimensional errors, making module stacking and connection alignment difficult.

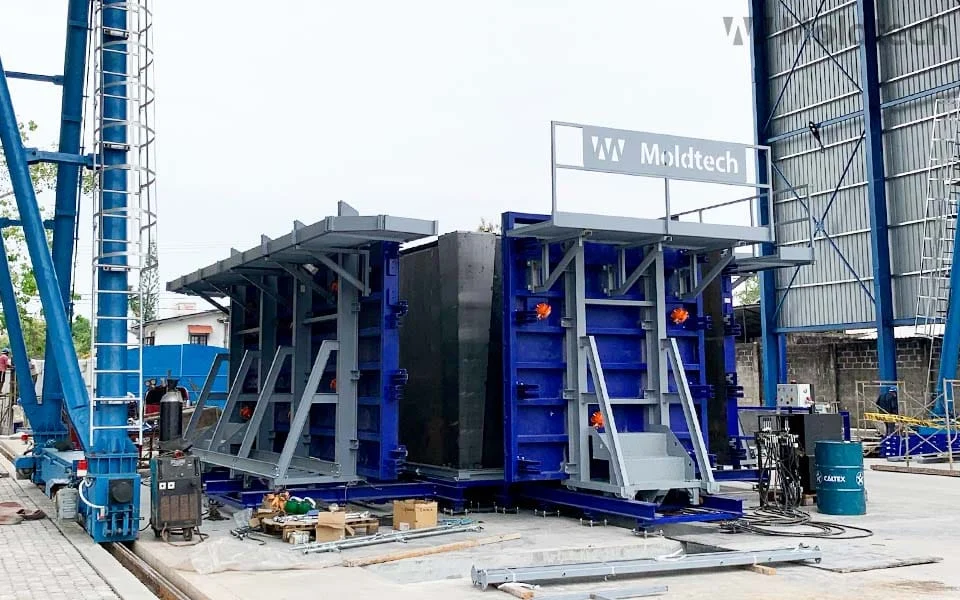

Stress-relieved bases, machined reference surfaces and synchronized exterior guides. Define length, width and diagonal tolerances in the acceptance plan.
Large contact surfaces resist stripping. Uneven release can damage corners and slow the casting cycle.
A four-way hydraulic shrinking core creates release clearance before lifting. A 20-minute stripping-preparation target is assessed against geometry and concrete strength.
Moving 30–50 t modules between casting, curing and finishing can become the factory’s main bottleneck.
Payload-matched rail carts or AGVs, coordinated lifting points and interlocked routes create a planned flow between workstations.
Explore the five workstations of a volumetric modular precast plant.

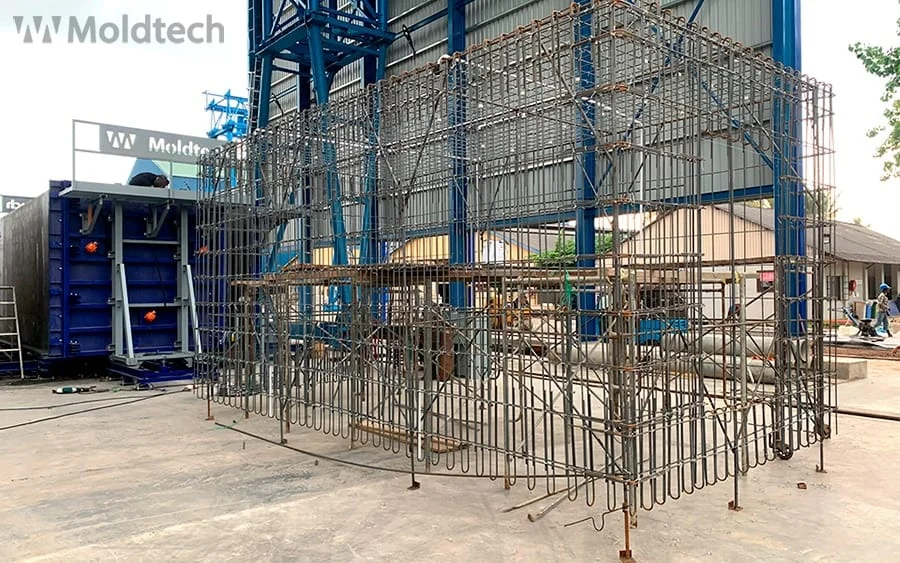

Rigid steel jigs support spatial rebar assembly outside the casting bay. Magnetic locators and mechanical brackets position MEP conduit sleeves, lifting points and grouting couplers before the cage is lifted into the mould.

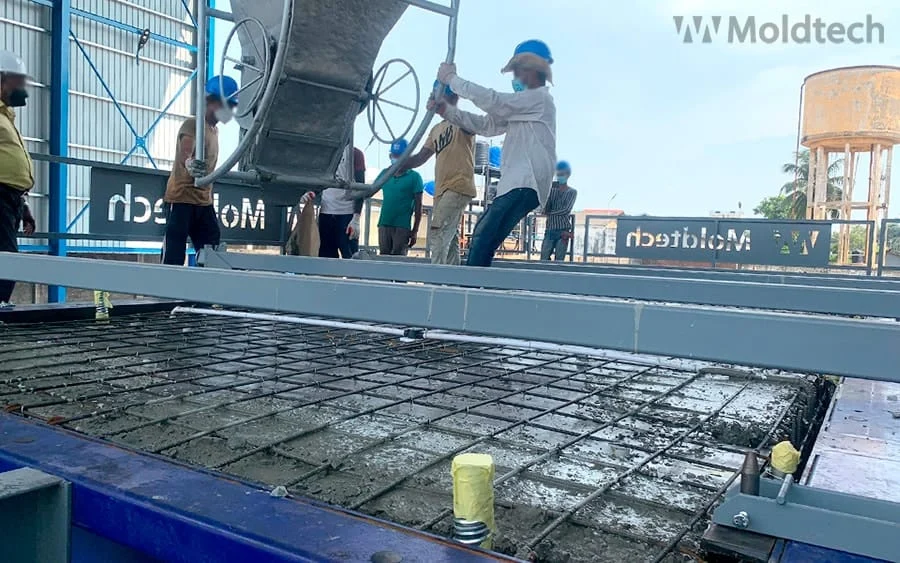

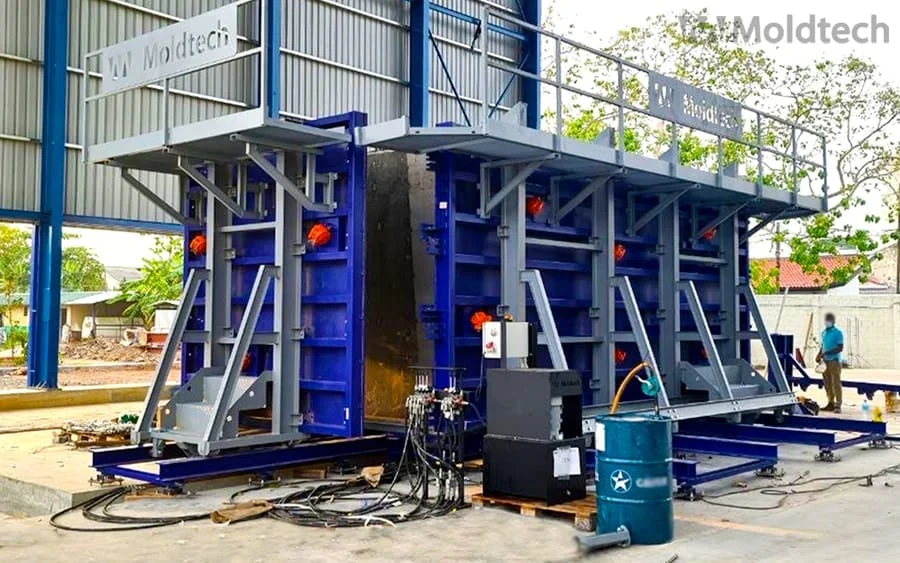

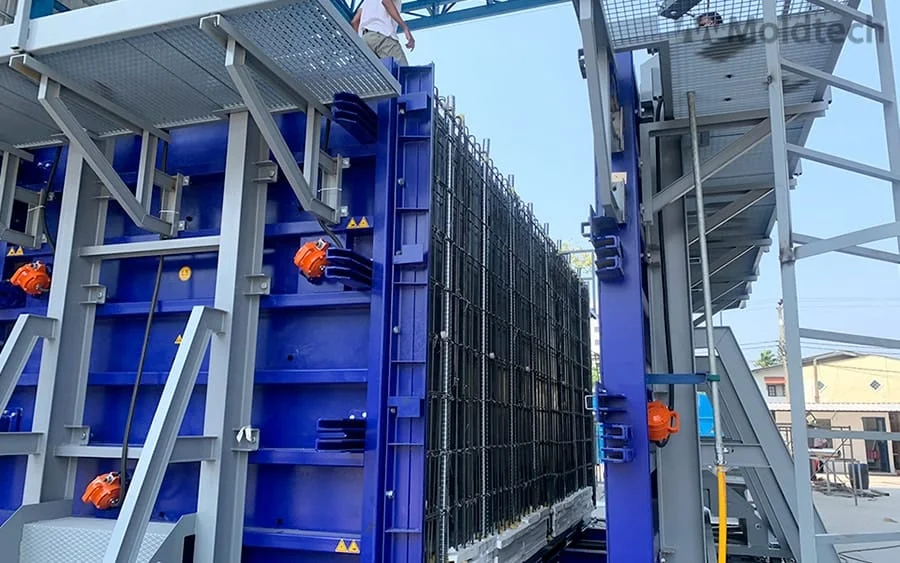

A monolithic five-face mould forms the walls and roof or slab in one pour, subject to structural design. A hydraulic power unit drives a shrinking internal core and guided exterior walls. Integrated vibration supports consolidation around dense reinforcement.

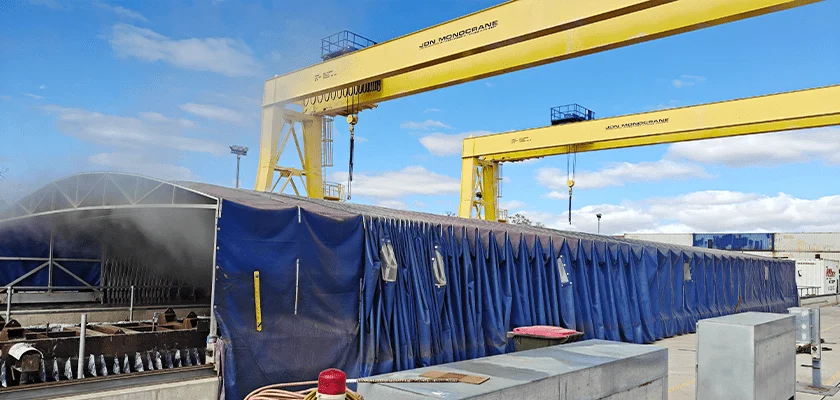

Motorized insulated enclosures close over the casting station. PLC controls manage heating, constant-temperature curing and controlled cooling. Mix trials and strength tests establish the release schedule; an 8–10-hour cycle is a planning target, not a universal guarantee.

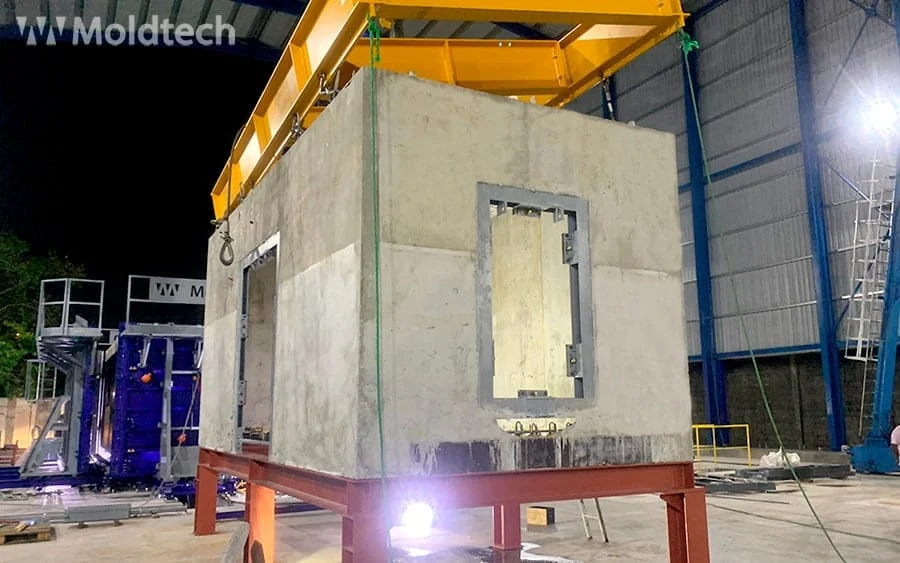

Synchronized multi-point hydraulic lifting releases the module from its base while controlling differential movement. Rail carts or multidirectional AGVs connect stripping, inspection and finishing bays. Load distribution and lifting inserts are checked against the structural design.

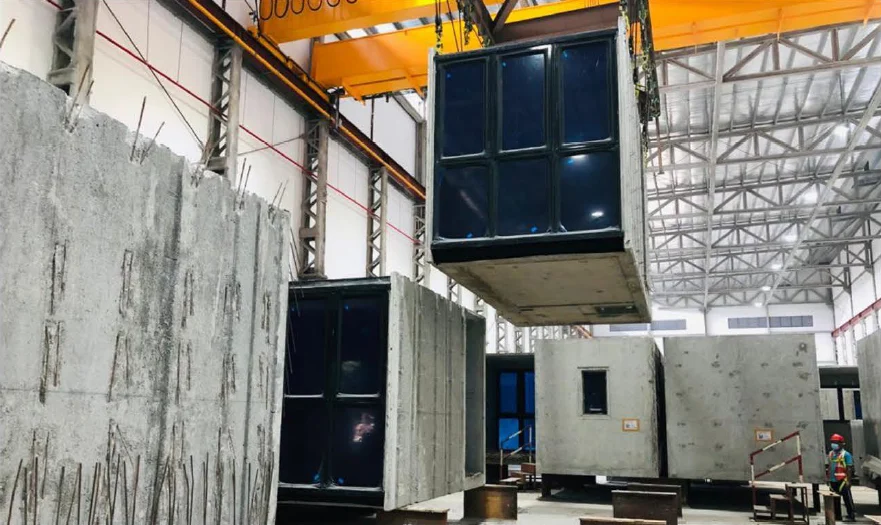

Multi-level staging platforms give teams coordinated access inside and outside each module. The line can accommodate insulation, light-gauge framing, prefabricated bathroom unit (PBU) docking and MEP continuity and pressure testing.
Industry photographs illustrate the production stages. Final equipment configurations are agreed during project engineering.
Planning ranges for your initial feasibility review. Final values depend on structural calculations, module geometry and plant civil layouts.
Compare configurations · Scroll horizontally on smaller screens →
| Engineering parameter | Standard volumetric line | Heavy-duty / high-rise system |
|---|---|---|
| Target module envelope | L: 6.0–9.0 m | W: 2.8–3.6 m | L: up to 12.0 m | W: up to 4.5 m |
| Module height capability | 2.8–3.2 m | Up to 3.6 m; high-clearance core |
| Dimensional tolerance targets | Length / width: ±1.5 mm | Diagonals: ±2.0 mm | Laser-calibrated target: ±1.0 mm |
| Mould mechanical structure | Monolithic 5-face hydraulic box mould | Split modular multi-wall variable mould |
| Core stripping mechanism | Synchronized 4-way hydraulic shrinking | Multi-linkage telescopic hydraulic system |
| Logistics payload rating | 25–40 t per transfer unit | 50–80 t heavy-duty AGV / trolley |
| Daily line productivity target | 2–4 modules / day; multiple stations | Configured to curing cycle and shifts |
| Project standards for design review | Singapore BCA PPVC / MASA; Hong Kong BD MiC | Applicable Eurocodes, ASTM and BS standards |
Tolerance and productivity figures are design targets, subject to module review and agreed acceptance tests. Local project approvals, including BCA or Hong Kong BD acceptance, are project-specific and are not conferred by equipment supply.
One coordinated equipment scope, with clear interfaces between your building design, factory and production process.
Factory logistics planning, crane coverage and capacity review, foundation loading data and utility connection requirements.
Steel fabrication, stress relief, precision machining and hydraulic system assembly to approved equipment drawings.
Optional curing records, RFID or barcode tracking, hydraulic monitoring and output dashboards matched to your plant systems.
On-site erection guidance, cold and hot commissioning, trial pours, operator training and documented handover.
Agree the evidence your team needs before equipment leaves the factory.
Critical contact surfaces, alignment and dimensional inspection are defined in the agreed inspection plan.
Agree the measurement method, instrument accuracy and inspection records before manufacturing starts.
Define trial assembly, hydraulic testing, preservation, packing and lifting requirements before shipment.
Specify dry-run assembly, hydraulic pressure tests and geometric inspection in the supply agreement. Request the inspection scope and example records with your proposal.

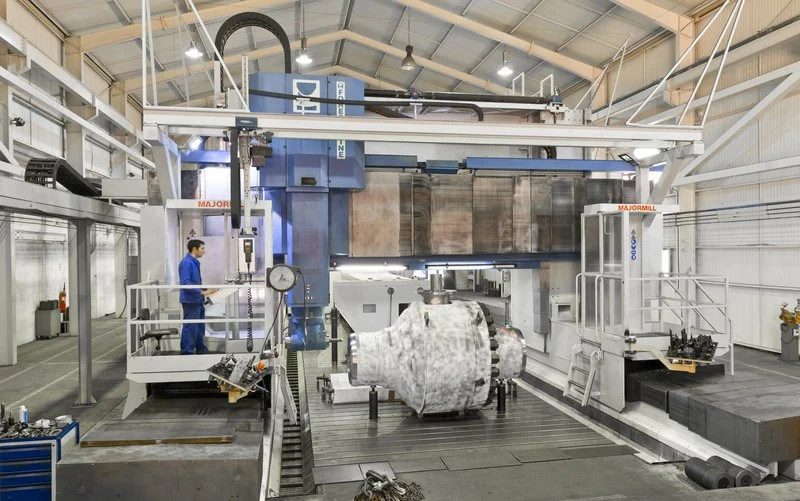

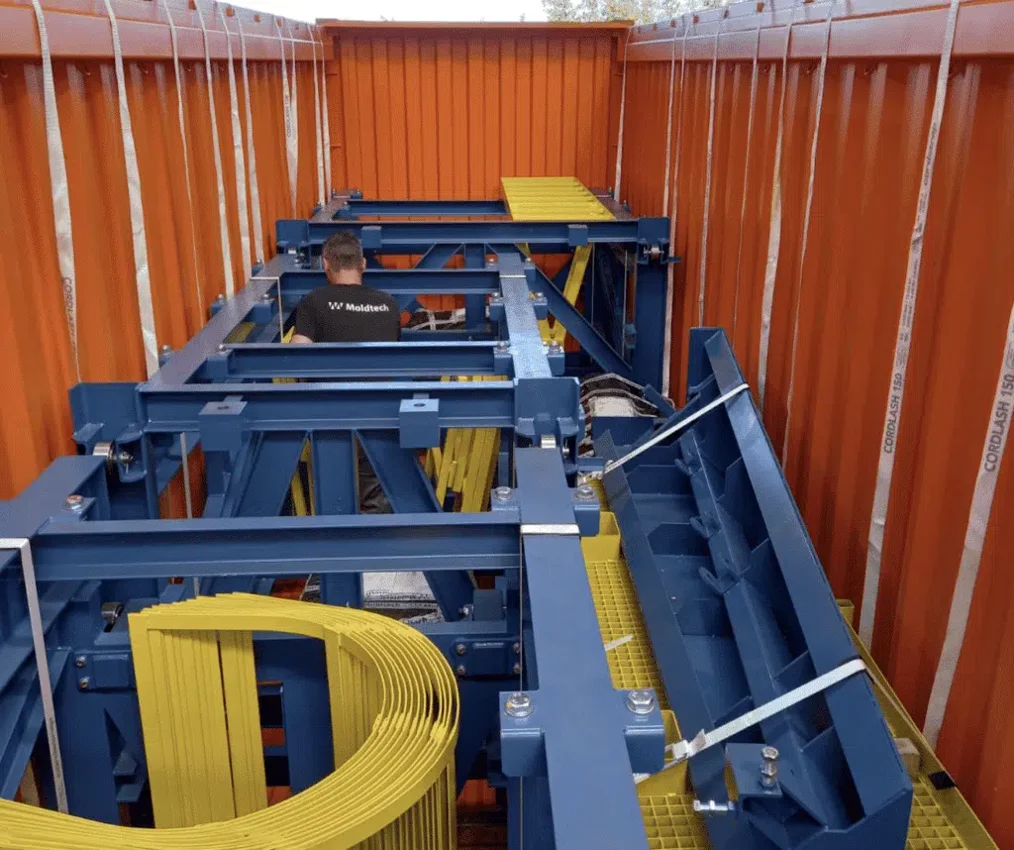

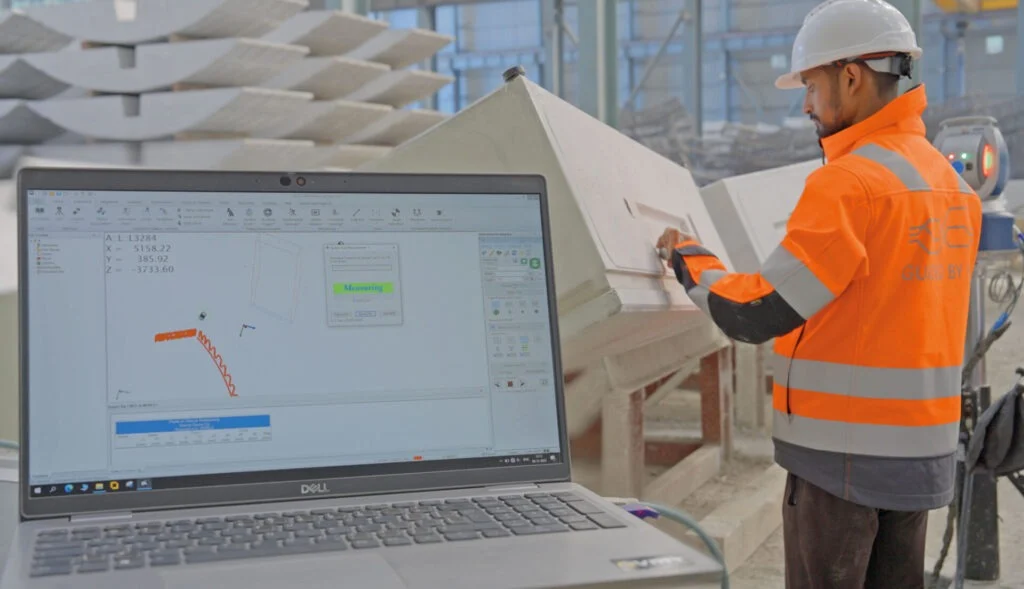

Industry examples: gantry machining, laser-based dimensional inspection and container loading.
