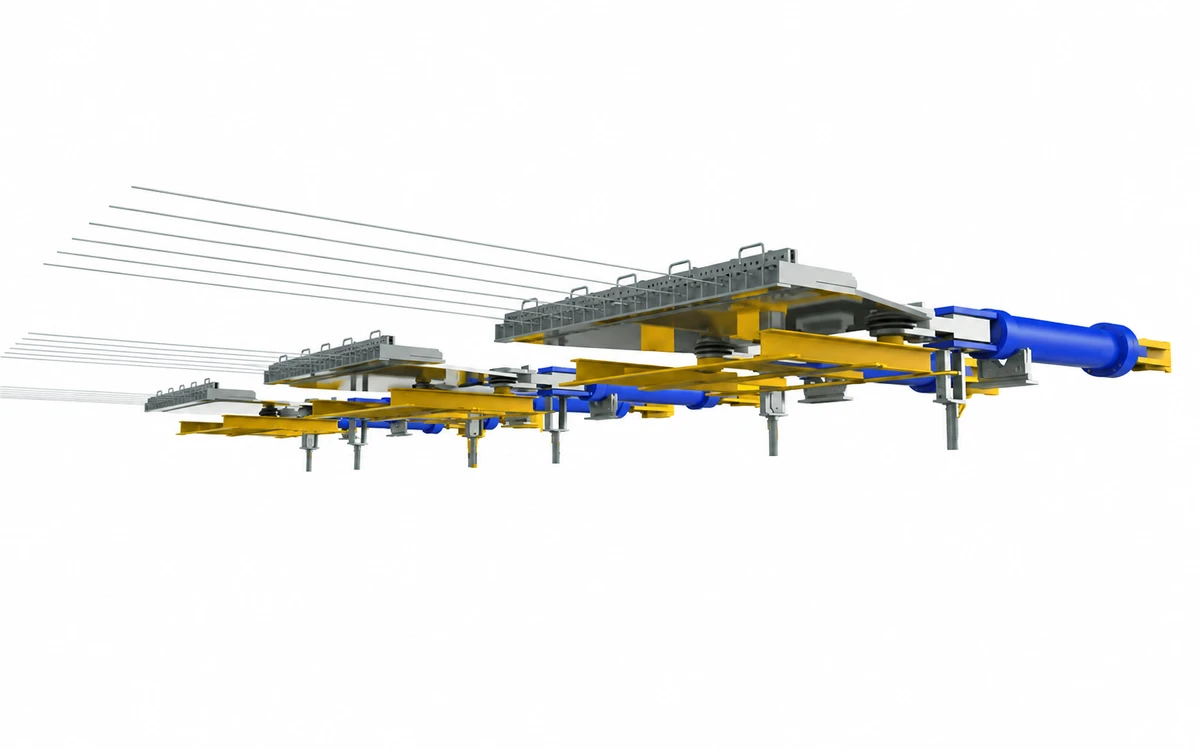

Automatic Gang Stressing Machine for Prestressed Composite Slabs
An automatic gang stressing machine applies the specified stressing operation to the reinforcement arrangement of a prestressed composite slab line. The reference design offered through REALJET includes automatic pin insertion and withdrawal, two stressing modes, one-touch return and real-time monitoring of stressing force and cylinder stroke. It is selected together with the production bed and anchorage system.
Application
Stressing as part of a prestressed slab line
Gang stressing belongs to the prestressing stage of the production process. The machine operates at the interface between the reinforcement arrangement and the bed's stressing and anchorage components. Product drawings, reinforcement specifications and the approved stressing procedure define the required duty.
The equipment must therefore be reviewed as part of a coordinated system. A machine's force rating alone cannot establish that a production bed, anchorage arrangement or slab design is suitable. The scope needs to identify how these components work together and who provides each part of the installation.
Equipment features
Pin operation and monitored stressing
- Automatic pin insertion and withdrawal: the reference design includes the pin-operation mechanism described in the catalogue.
- Two stressing modes: two modes are provided; the required operation is confirmed against the approved process.
- One-touch return: the machine can return to its starting position using the specified control function.
- Force monitoring: sensors monitor reinforcement stressing force in real time.
- Cylinder-stroke monitoring: the control arrangement also monitors cylinder travel during the operation.
These features describe the available equipment functions. The stressing sequence, target values, instrumentation requirements and acceptance criteria are defined in the technical package for the actual line.
Working sequence
Equipment sequence within the approved process
- Prepare the reinforcement, bed and anchorage interfaces for the agreed stressing operation.
- Use the pin mechanism in the defined engagement sequence.
- Run the selected stressing mode while monitoring force and cylinder stroke.
- Complete the approved handover to the anchorage arrangement and return the machine as specified.
This is a functional overview for equipment selection. Production stressing and release procedures must follow the engineered system and product requirements.
Technical reference
Reference Specifications
| Item | Reference specification |
|---|---|
| Equipment function | Gang stressing for a prestressed composite slab line |
| Pin operation | Automatic insertion and withdrawal |
| Stressing modes | Two modes; operating details project-specific |
| Return function | One-touch return to starting position |
| Monitored variables | Reinforcement stressing force and cylinder stroke |
These figures describe the reference configuration. Final dimensions, equipment scope and operating conditions are confirmed in the project specification.
Equipment selection
Define the required force and system interfaces
Provide slab drawings, reinforcement material and size, the number and arrangement of stressing elements, and the required force and stroke. Include production-bed geometry and anchorage details. State which components are already installed and which are required in the new package.
The review should establish the rated force in agreed engineering units, the force and stroke monitoring requirements and the physical engagement interface. It should also define the responsibilities for the bed, reaction structure, anchorage and machine controls. This makes equipment proposals comparable on the actual stressing duty rather than on an isolated catalogue figure.
Equipment questions
Frequently Asked Questions
What does gang stressing mean in this application?
It refers to the stressing operation for a group of reinforcement elements in the specified slab-production arrangement. The compatible reinforcement layout and engagement system need to be defined for the line.
Does the machine include the complete prestressing bed?
The machine and bed are separate scope items unless the project package explicitly includes both. Bed, anchorage, reaction structure and controls should each have an agreed supply boundary.
Which measurements does the reference design monitor?
The catalogue describes real-time monitoring of reinforcement stressing force and cylinder stroke. Required measurement ranges and acceptance criteria are confirmed during technical review.
Can the two stressing modes be used with any reinforcement system?
The catalogue does not establish universal compatibility. The operating mode must match the selected reinforcement, anchorage arrangement and approved stressing procedure.
