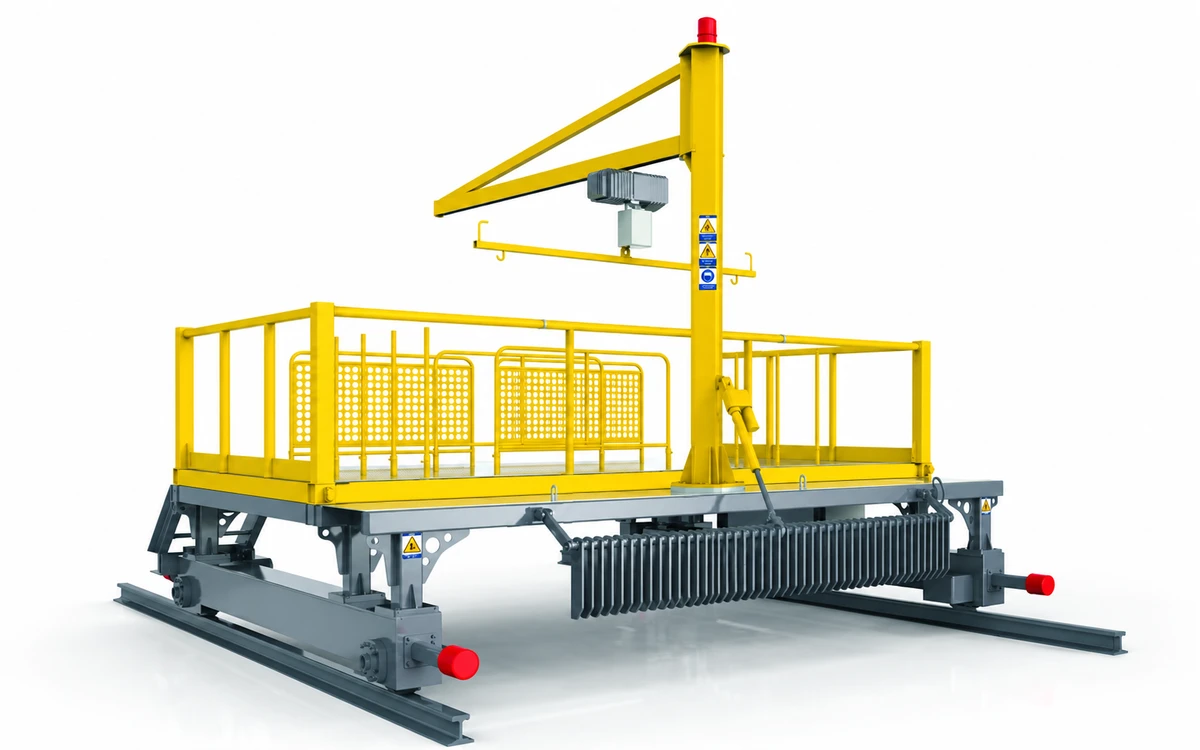

Surface Roughening and Shutter Handling Machine for Precast Slabs

Two equipment duties on the slab line

The machine brings the roughening unit and shutter-handling facilities onto one travelling arrangement. The required surface treatment, shutter type and handling sequence need to suit the slab design and production process. These details determine how the combined equipment is used on the bed.

The source describes combined roughening and shutter collection, but the exact working sequence remains specific to the plant. The process review should establish when each task takes place, how the shutters are presented for collection and where they are stored. The machine should be specified around those tasks rather than described as a general concrete surface-preparation tool.

Roughening adjustment and shutter collection

• Combined working arrangement: surface roughening and stop-end or side shutter collection are included in the equipment concept.
• Assisted lifting: the reference hoist supports the defined shutter-handling task within its specified capacity.
• One-touch roughening-unit movement: the unit can be raised or lowered through the control function described in the catalogue.
• Dedicated storage platform: the arrangement provides a place for collected shutters.
• Remote and control-panel operation: both interfaces are included in the source description.

The plant review should establish compatible shutters, handling weights and operator access. The roughening-unit adjustment must also match the bed and the required working position.

Organize the work around the slab process

1. Prepare the roughening unit and shutter-handling arrangement for the selected bed.
2. Position the machine at the defined working area.
3. Use the roughening and shutter-collection functions at the stages required by the approved process.
4. Place collected shutters on the designated platform and clear the equipment for the next operation.

The concrete condition, surface requirement and permitted shutter-removal stage need to be defined for the actual slab. This overview describes equipment functions without prescribing a universal process window or removal order.

Reference Specifications

These figures describe the reference configuration. Final dimensions, equipment scope and operating conditions are confirmed in the project specification.

Check surface requirements and shutter weights

Send the slab drawings, bed dimensions and required surface finish. Provide shutter details, individual handling weights and the proposed storage method. The review also needs the machine's travel path, conductor-rail position and clearances around the bed.

Keep travel speed, hoist capacity and roughening adjustment separate when comparing proposals. The travel figure does not establish the working treatment speed. The hoist rating applies to its defined lifting duty, while the roughening stroke describes unit movement rather than a guaranteed treatment depth. Each parameter should be connected to the actual task.
