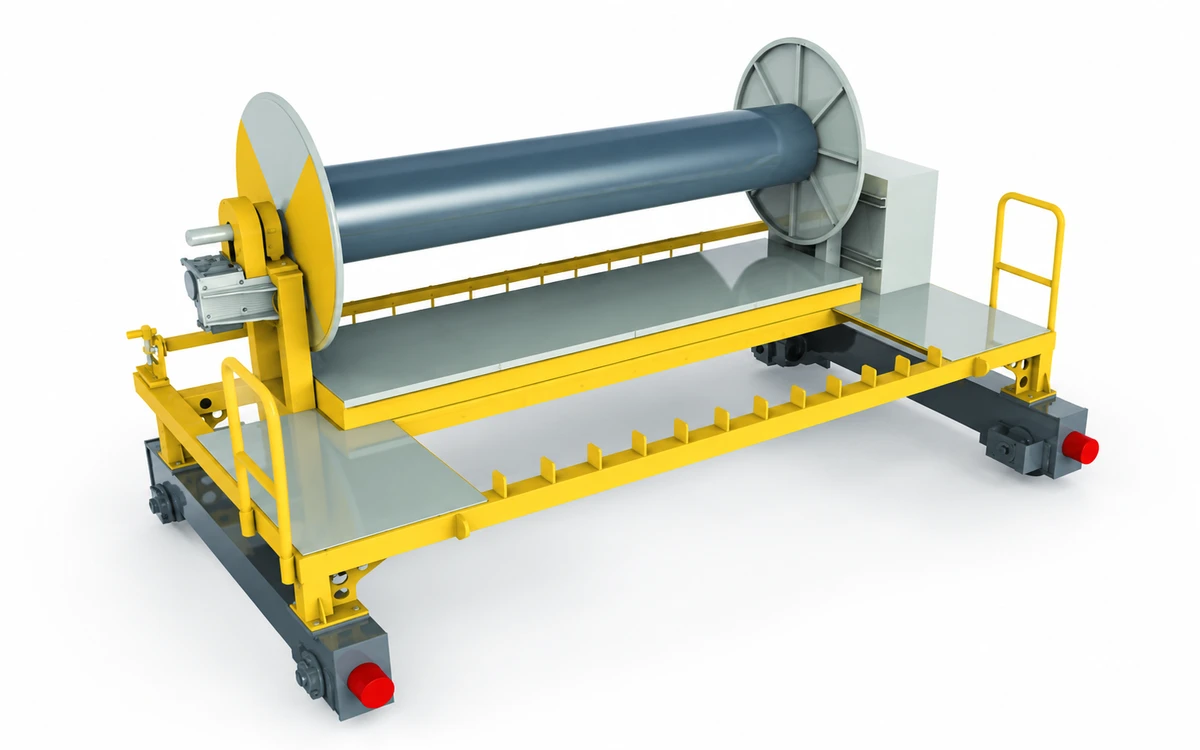

Reinforcement and Film Laying Machine for Precast Slab Beds
A reinforcement and film laying machine combines reinforcement-handling features with automatic film laying on a prestressed composite slab production bed. The reference equipment offered through REALJET includes quick-release film rollers, fast reinforcement clamping, an anti-disengagement comb arrangement and polyurethane-coated wheels. Catalogue travel speed is 0–40 m/min, with conductor-rail power supply.
Application
Prepare the slab bed for subsequent operations
The machine belongs to the bed-preparation stage of the prestressed slab line. Its equipment functions address placing the selected film and handling the reinforcement through the specified clamping and comb arrangements. The final preparation sequence needs to suit the actual bed, reinforcement layout and product process.
The film material and its purpose must be defined in the production specification. The machine description does not establish that every film type or reinforcement arrangement is compatible. Material dimensions and the way they are handled need to be checked before the equipment is selected.
Equipment features
Film access and reinforcement handling
- Automatic film laying: the reference design provides an automatic film-laying function along the production bed.
- Quick-release film rollers: the roller arrangement supports film-roll removal and replacement.
- Fast reinforcement clamping: the specified clamping arrangement supports the reinforcement-handling task.
- Anti-disengagement comb design: the comb arrangement includes the feature described in the source catalogue.
- Polyurethane-coated wheels: the travelling equipment uses the stated wheel construction.
- Remote-control operation: the reference machine is operated through a remote-control interface.
The supply package should identify the compatible roll, reinforcement and bed interfaces. These details define the practical use of the machine more clearly than the travel-speed range alone.
Working sequence
A preparation sequence to confirm for your bed
- Fit the specified film roll using the roller arrangement.
- Prepare the reinforcement in the agreed clamping and comb interfaces.
- Travel along the defined bed route while carrying out the required laying operation.
- Complete the material handover and reset the equipment for the next preparation cycle.
The exact order and the division of tasks between the machine and operators follow the selected production process. This functional outline does not imply automatic reinforcement manufacture, welding or tying.
Technical reference
Reference Specifications
| Item | Reference specification |
|---|---|
| Reference travel speed | 0–40 m/min |
| Power supply | Conductor rail |
| Film laying | Automatic |
| Film roller arrangement | Quick release |
| Reinforcement handling | Fast clamping / anti-disengagement comb |
| Wheel construction | Polyurethane-coated wheels |
| Operation | Remote control |
These figures describe the reference configuration. Final dimensions, equipment scope and operating conditions are confirmed in the project specification.
Equipment selection
Match the machine to film, reinforcement and bed
Send the production-bed dimensions, reinforcement layout and film specification, including roll dimensions where available. The review also needs the travel route, available clearances and conductor-rail arrangement. Identify the equipment used before and after this preparation operation.
For an upgrade, provide drawings or photographs of the current bed edge, travel path and material loading area. The assessment should establish how film rolls and reinforcement reach the machine and how operators access the loading interfaces. A complete preparation cycle includes these tasks as well as the machine's travelling movement.
Equipment questions
Frequently Asked Questions
Does this machine manufacture the reinforcement?
The described functions concern reinforcement handling and film laying on the slab bed. The source does not describe reinforcement cutting, welding or tying as machine functions.
What film can be used?
Film type, width, roll dimensions and production purpose need to be specified for compatibility review. The catalogue's automatic laying feature does not establish universal material compatibility.
Does 40 m/min mean the film is laid at that speed?
The figure is the upper end of the catalogue travel-speed range. The working laying speed depends on the selected material, task and production procedure.
What power-supply arrangement is specified?
The reference equipment uses a conductor rail. Its installation route and interfaces are confirmed with the plant layout.
