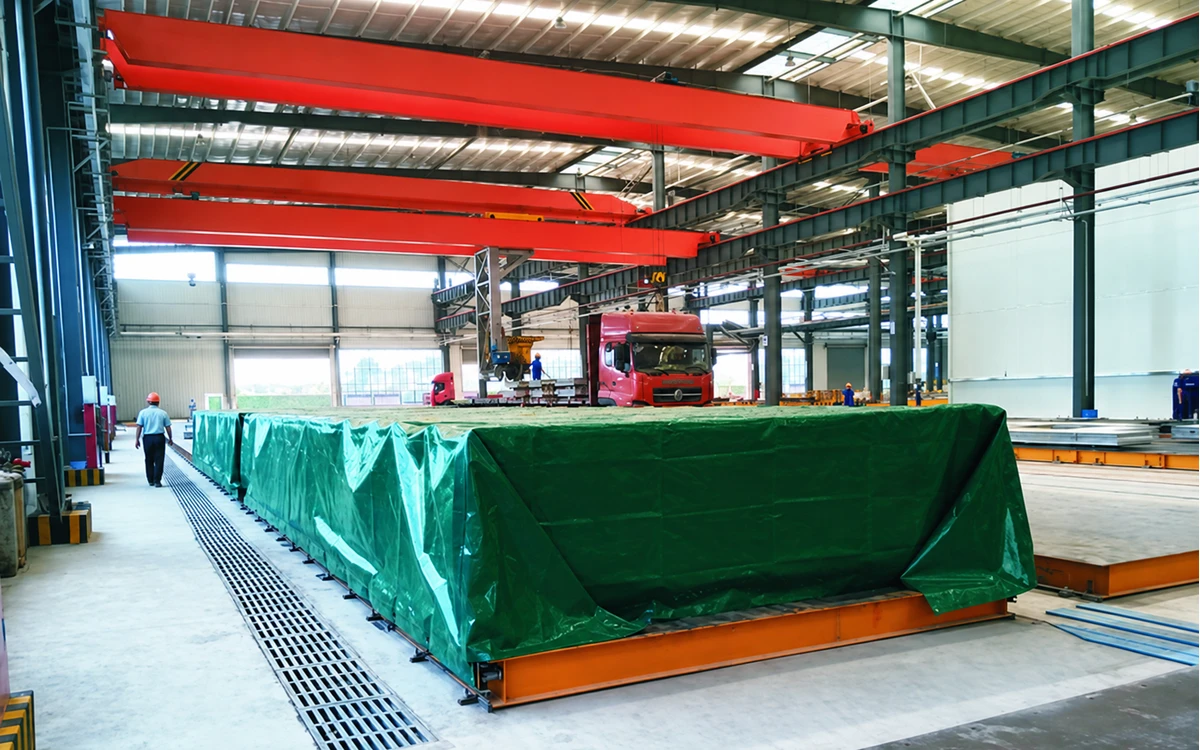

Retractable Curing Cover for Long-Line Precast Casting Beds

Cover the bed during the curing stage

A long-line layout keeps production activities around the casting bed. The curing cover must fit that bed and allow the required access when retracted. Its extended position, stored position and interfaces with neighbouring equipment need to be considered together.

The cover provides the enclosure function within a curing arrangement. Steam generation, distribution and process control need their own defined scope. This distinction helps the plant team compare a cover-only proposal with a complete curing package and identify which installation items remain to be provided.

Motor-driven extension and retraction

• Motor-driven movement: the reference design uses a motor to move the cover arrangement.
• One-touch extension and retraction: the stated automatic movement function covers opening and closing the enclosure.
• Steam-curing application: the cover is intended for the steam-curing arrangement described for the selected production bed.
• Access planning around the bed: the retracted position must be considered alongside the work performed on the casting table.

The final equipment drawing should identify the covered area and the space occupied by the retracted cover. Material, sealing, movement and utility details belong in the agreed specification for the selected configuration.

Opening and closing within the production sequence

1. Clear the cover's movement path according to the plant's operating procedure.
2. Extend the cover over the defined bed area using the specified control function.
3. Operate the separate steam-curing system in accordance with the approved process.
4. Retract the cover when the process permits access to the casting bed.

Automatic cover movement does not define the temperature programme, curing duration or concrete release criteria. These follow the production process and the controls included in the complete curing system.

Reference Specifications

These figures describe the reference configuration. Final dimensions, equipment scope and operating conditions are confirmed in the project specification.

Match coverage, access and steam-supply scope

Send the casting-bed length and width, required coverage, product clearance and available retraction space. Include the layout of distribution, reinforcement and handling equipment around the bed. The review should confirm whether the reference dimensions describe the selected cover section or the complete proposed arrangement.

State whether the project needs a cover only or a wider curing package. Identify the steam source, pipework and process-control responsibilities in the proposal. Where sectional curing is required, the arrangement needs a specific review; the reference cover dimensions do not establish independent control of multiple curing zones.
