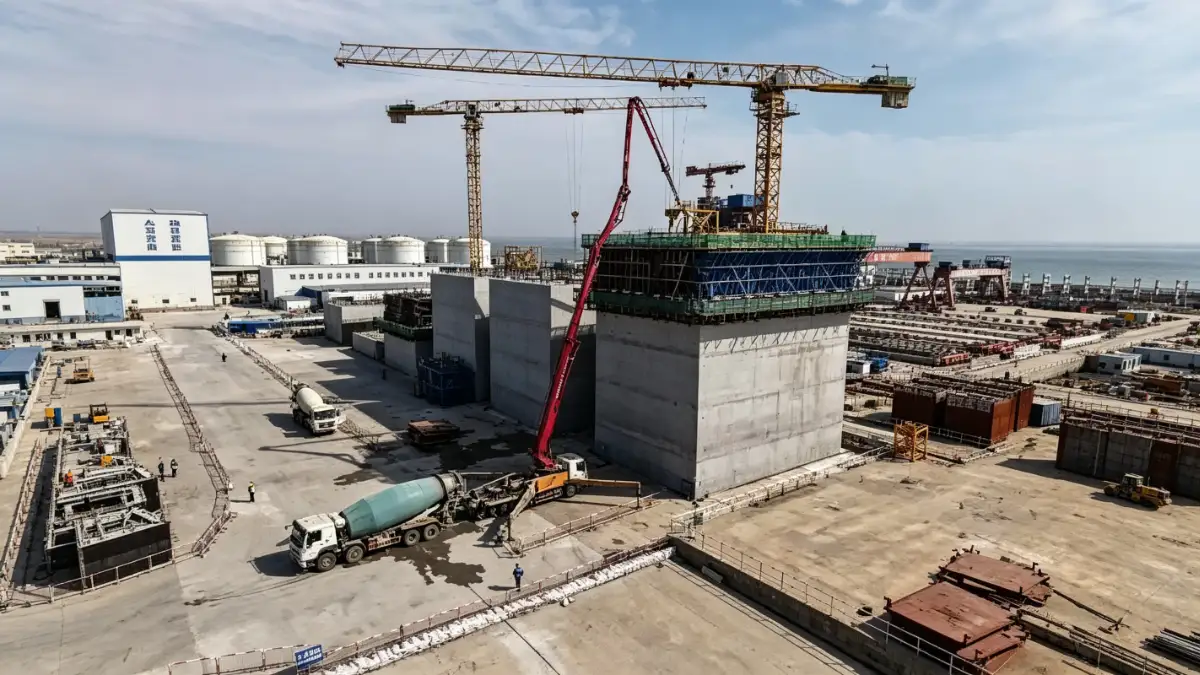

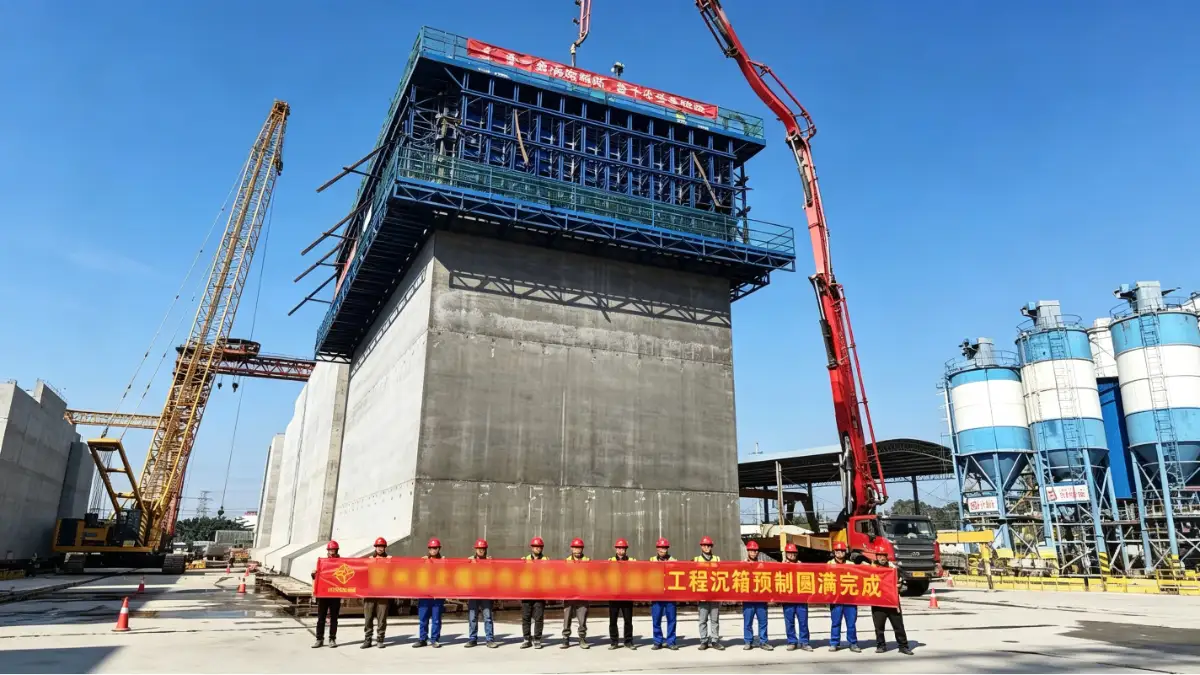

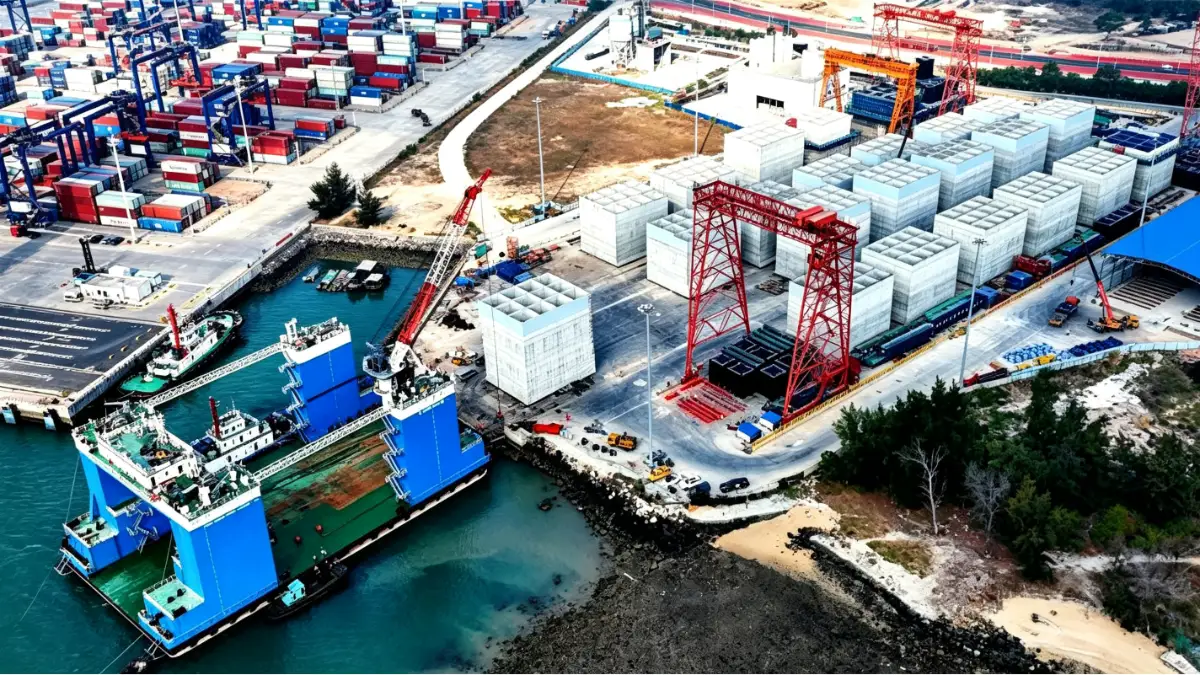

Marine caisson production applications
Precast concrete caisson moulds are reviewed for large hollow marine structures used in harbour, quay, breakwater and coastal works. Engineering starts from the approved external geometry, internal-cell arrangement, construction joints, casting stages, reinforcement and embedded items.
Is this mould relevant to your project?
This formwork type may be relevant when:
- Approved caisson geometry defines multiple cells, construction joints or casting stages
- Reinforcement congestion and embedded items affect panel division and working access
- Internal forms require a planned installation and withdrawal sequence
- Form repositioning, platforms and yard handling must follow a defined production programme
Configuration directions
| Configuration direction | When it may be considered | Main review focus |
|---|---|---|
| Modular outer and internal form panels | The caisson is divided into practical assembly and casting stages | Panel joints, ties, supports, access and dimensional references |
| Repositionable form sections | Repeated stages or related units reuse approved form geometry | Lifting points, reference positions, changeover and storage |
| Project-specific working-platform interfaces | Placement, inspection or form operation requires elevated access | Loads, access routes, guard interfaces and casting sequence |
Product performance and engineering features
- Modular outer form panels configured around the approved caisson dimensions
- Internal forms reviewed for cell geometry, withdrawal direction and working access
- Stiffeners, ties, supports and platform interfaces developed for the agreed casting sequence
- Concrete placement, vibration and inspection access coordinated with reinforcement and embedded items
- Opening, stripping, lifting and form-repositioning methods reviewed against the production-yard plan
Final structural checks, panel arrangement, materials, tolerances and operating method remain subject to the approved design basis and project documents.
Required project inputs
Use the enquiry Message to outline the caisson dimensions, internal-cell layout, casting stages, target production programme, lifting or handling plan, yard conditions and whether approved drawings are available. Detailed drawings are requested through an appropriate follow-up channel.
About Realjet
Realjet reviews project-specific mould requirements from the approved component geometry and production plan. The agreed scope can include formwork engineering, steel fabrication, workshop assembly, inspection and interfaces for installation or production support.
