Choose an individual process or a defined fabrication and machining package. We review material, geometry and assembly interfaces before confirming the route.
01 / Prepare the parts
Cutting & forming
Laser, plasma or flame cutting prepares profiles and openings. Forming and levelling follow the material and approved geometry.
Profiles · bend access · edge requirements
02 / Build the structure
Welded structures

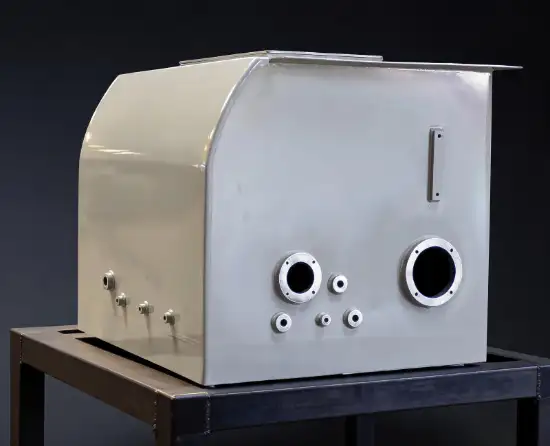

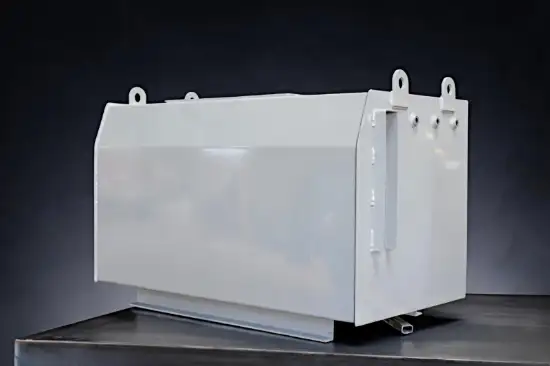

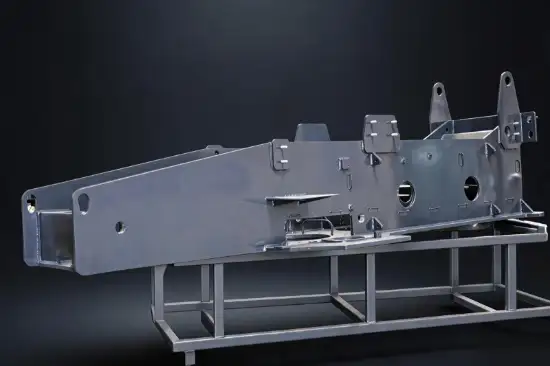

Frames, chassis and fabricated tanks are planned around joint access, fixtures and weld sequence.
Joint preparation · fixtures · distortion control
03 / Finish the interfaces

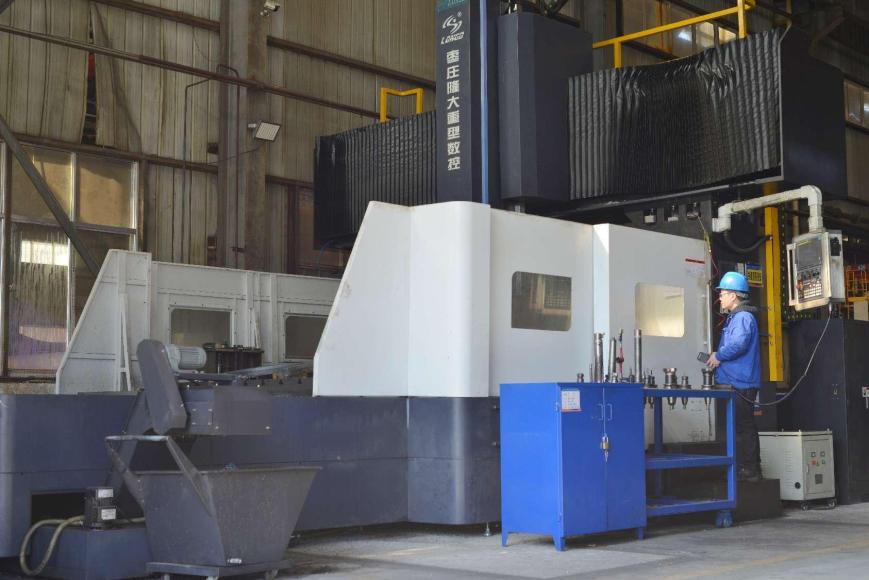

CNC machining
Milling, boring, drilling and tapping locate the faces and holes needed for your equipment assembly.
Datums · locating bores · mounting faces
04 / Complete the scope
Finishing & assembly
Agree the surface preparation, masking, finish, hardware and mating checks for the delivered component.
Drawing-based metalwork for server infrastructure, cooling equipment and inspection stations. Agree mounting datums, fixing access and the supplied assembly scope.

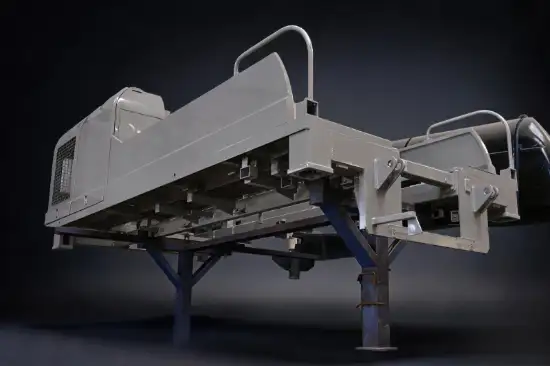

Machine frames, cabinet bases and equipment mounting parts
Custom fabricated and machined components for battery production, energy storage, EV charging and solar equipment, reviewed against the required interfaces and finish.
The inspection plan follows your part’s critical features and delivery condition. Confirm what needs to be measured, when it needs to be checked and which records are required.
Material & revision
Confirm the drawing revision, material specification and required certificates.
Geometry & mating
Agree datums, critical faces, locating bores, hole patterns and any trial fit.
Finish & release
Review weld appearance, finish, masking, identification and packing against the order.
Send the component drawing, quantity and destination. We review the route and acceptance requirements with you before production.
Robotic welding
01
Share your requirement
Drawing and revision, material, finish, quantity and destination. Arrange confidentiality before exchanging controlled files.
02
Confirm the route
Resolve datums, welds, tooling, process order, external operations and the inspection records in the quotation.
03
Review the first article
Agree a sample or pilot quantity and required results. Record approved changes before repeat production.
04
Release for delivery
Confirm final checks, identification, packing protection and transport responsibilities.
Before you enquire
OEM manufacturing questions
Define what you want manufactured and how it will be accepted.
Do you manufacture components to customer drawings?
Yes. Realjet provides OEM contract manufacturing to customer drawings for custom metal components, including welded structures, machinery chassis, tanks and assemblies. Drawings, materials, critical dimensions and acceptance requirements are reviewed before the manufacturing scope is agreed.
Can I enquire about samples, small batches or recurring orders?
Include the trial quantity and expected repeat volume in your enquiry. Feasibility, tooling needs and minimum order quantity are assessed for the specific component; there is no single minimum quantity that applies to every project.
How are pricing and lead time determined?
Pricing and scheduling depend on the drawings, material, quantity, process route, tooling, inspection requirements and delivery destination. Share what is known in the initial enquiry; the remaining details are clarified before a quotation and schedule are agreed.
What inspection documents should I request?
Specify the material certificates, dimensional reports, weld inspection records, coating checks or other documents required by your project. The available records, applicable standards and acceptance criteria must be confirmed as part of the agreed order scope.
How should I share confidential drawings?
Use the initial form for a non-confidential description of the component. Realjet will contact you to agree the drawing exchange method. If your company requires an NDA or other confidentiality arrangements, raise these before sharing controlled files.
Can export packaging and delivery be included?
Include the delivery country, destination and any packing or marking requirements in your enquiry. Protection, export packing, transport responsibilities and delivery terms are reviewed and confirmed in the quotation scope.
Your next component
Send your drawings for a manufacturing review
Attach the PDF drawing and available STEP/DXF files, bill of materials, quantity and destination in your email. Use Enquiry to arrange confidential file exchange first.
