For server OEMs and data-center equipment builders

Custom Metal Parts for AI Servers and Data Centers

Source the metal structure for your server or its supporting equipment. Order individual chassis parts, formed supports or welded frames to your drawings, with the mounting interfaces and inspection scope agreed before manufacture.

Explore Components
Made to your drawings

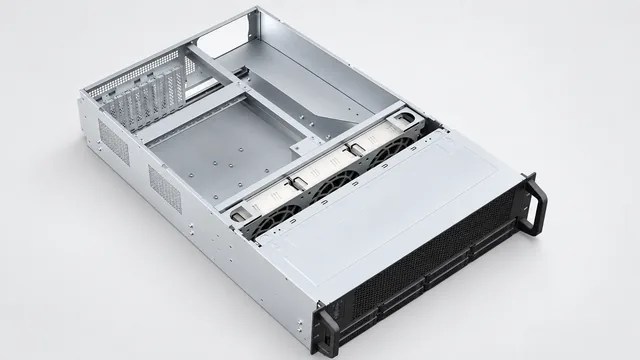

GPU Server Sheet-Metal ChassisCustom metal componentsGPU Server Sheet-Metal Chassis
Server Rack Welded Frame CDU Chassis Frame
Built around your assembly

Metal components matched to your equipment

Choose the part by where it sits in your assembly: inside the GPU server, in the rack and power system, around the liquid-cooling equipment, or in the battery backup cabinet. Each detail page explains the part you can order, its manufacturing route and the fit checks to define.

For your equipment team

GPU server and chassis OEMs, rack builders, power-equipment manufacturers, CDU integrators and battery-backup cabinet suppliers.

Start with the mating view

Start with the mating assembly. Tray heights, module slots, rail attachments and service openings need a common set of datums so the finished metalwork fits your equipment.

Choose your component

Find the part for your AI hardware assembly

15 component types

Server chassis and GPU supports

For the server enclosure, GPU carrier and replaceable fan modules.

Rack and power equipment

For rack structure and the mechanical supports around modular power systems.

Liquid-cooling equipment supports

For the CDU frame, pumps, heat exchangers and rack cooling manifold.

Data-center battery backup structures

For the frame, trays, rails and service doors around battery backup equipment.

Manufacturing capability

From your drawing to finished metalwork

CNC bending equipment in the REALJET workshop
CNC bending workshop — forming is reviewed against the part geometry and required interfaces.

Formed shells and carriers

Plate preparation and CNC bending provide the route for chassis panels, carriers and brackets. Tool access, hole-to-bend distance and the selected finish are reviewed for the actual geometry.

Welded frames and mounting features

Welded fabrication can be combined with drilling, boring, tapping and specified face machining for rack and CDU interfaces. Joining order and post-join measurements follow the part’s datums.

Finished fit and release

Deburring, phosphating, powder coating and painting routes are available for review. Mark masked contacts and finished interface requirements; agree dimensional records and mating checks for the first article.

See equipment and process capabilities

Order loose parts or a defined joined structure. The quotation identifies supplied hardware, finish, inspection and any external operations. Electronics, complete-system performance and product-specific qualification are included only under an agreed scope.

Fit and acceptance

Checks that follow the installed part

Server parts

Specify tray support heights, GPU retention offsets and every fan-slot position. Trial-fit the nominated module or gauge after forming, joining and finish.

Racks and power shelves

Agree rail/base datums, complete module-bay positions and the free-state frame condition. Electrical contacts and system testing need a defined scope.

Cooling and backup supports

Define the pump/exchanger/manifold or battery-module interface and the service path. Loading, vibration or fluid-system tests are separately reviewed.

Your next step

Let’s review your part drawings.

Include a dimensioned PDF, available STEP/DXF/DWG files, material, finish, quantity and delivery city. Add the assembly view, drawing revision and acceptance requirements.

Email Your Drawings

Attach files in your email application. For confidential drawings, contact us first to arrange the exchange method and any required confidentiality agreement.

Before you enquire

Your manufacturing questions, answered.

Clarify the supply scope and information needed for a drawing-based quote.

Can I order one chassis part rather than a complete server enclosure?

Yes. Identify the bottom shell, panel, tray or bracket in your enquiry and provide its part drawing with the mating assembly. The quotation defines individual parts, joined structures, purchased hardware and delivery condition.

Which components are for the server itself?

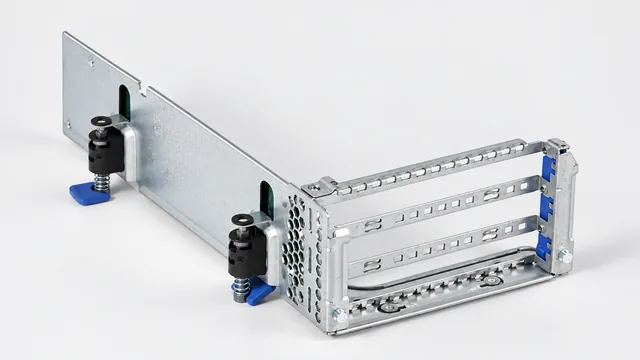

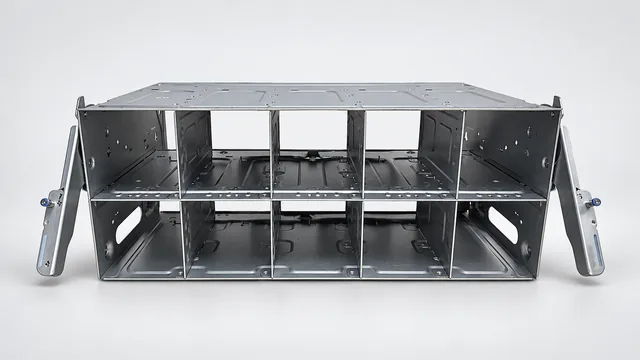

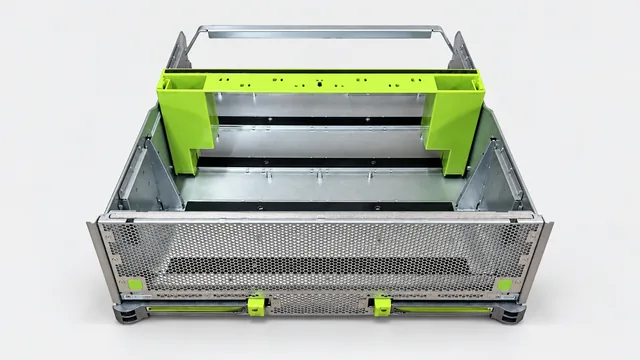

Chassis shells, GPU trays, retention brackets and fan cages are server parts. Rack frames, power shelves, CDU structures and battery backup supports belong to the surrounding data-center equipment; each uses its own approved design.

Do cooling support parts include the coolant circuit?

The proposed frame, pump plate and brackets are mechanical supports. Pumps, heat exchangers, manifolds, hoses and coolant are separate unless explicitly included. Pressure, leak and cooling-performance validation have their own scope.

What should I send for an AI equipment component quote?

Send a dimensioned PDF and available STEP, DXF or DWG files, the assembly view, material, finish, quantities and destination. Include module envelopes, interface datums, drawing revision and any fixture or recorded inspection requirements.

Can the first article be checked before repeat orders?

Request a sample or pilot batch with the dimensional report and mating checks you require. Specify who provides the modules or gauges. Scope, timing and repeat-order release are agreed after drawing review.
