Custom OEM supply to your drawings
REALJET provides custom CNC cut sheet metal profiles to your drawings for OEM and contract manufacturing orders. We review small cutouts, hole spacing, narrow webs and deburring before confirming the custom manufacturing scope. The manufacturing definition starts with the part's function, its installation space and the components it connects to. We review the requested geometry and delivery condition against those interfaces before defining the supply scope.

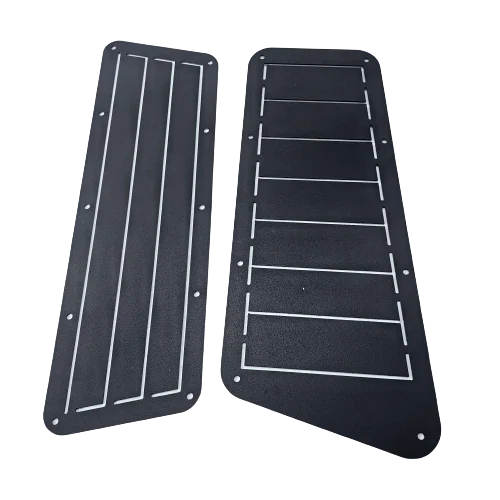

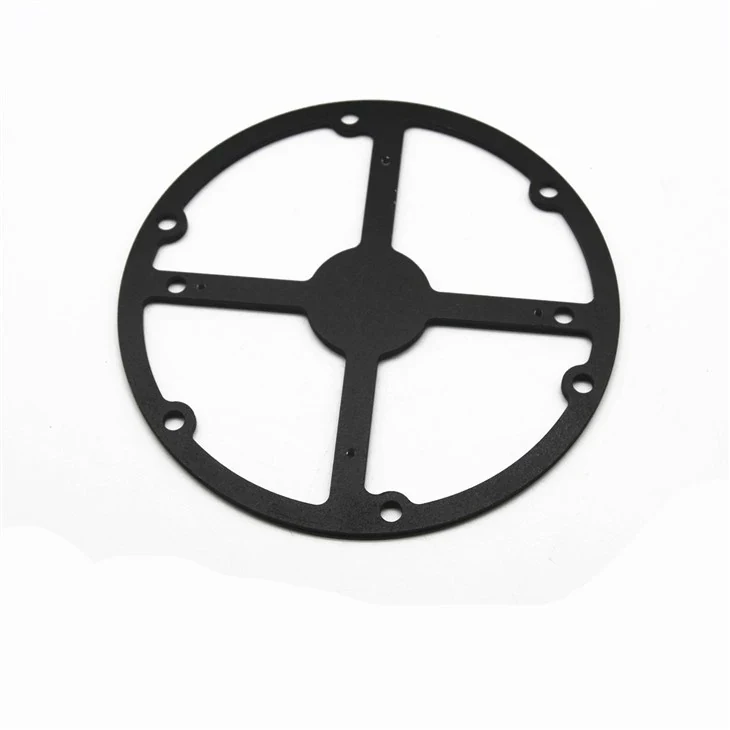

For this application, the drawing review focuses on small cutouts, hole spacing, narrow webs and deburring. Distinguish laser-cut features from those needing secondary machining; sheet thickness influences achievable detail. A photograph provides a configuration example; your approved documentation defines the material, dimensions, performance requirements and acceptance criteria for the ordered component.
Application fit
Small cutouts, hole spacing, narrow webs and deburring are reviewed against the equipment arrangement.
Material selection
Review specified steel, stainless steel or aluminum sheet against the design, process route and required delivery condition.
Acceptance focus
Distinguish laser-cut features from those needing secondary machining; sheet thickness influences achievable detail.
Project specification and quotation inputs
| Item | Information to confirm |
|---|---|
| Component / service | CNC Cut Sheet Metal Profiles |
| Material options | Specified steel, stainless steel or aluminum sheet |
| Geometry and interfaces | Small cutouts, hole spacing, narrow webs and deburring |
| Production scope | Laser-cut component manufacture with agreed secondary operations |
| Inspection focus | Profile dimensions, hole geometry and cut-edge condition |
| Quantity | Prototype, pilot batch or repeat order quantity for review |
| Supply condition | Loose component, part set or assembly as specified |
| Delivery | Schedule, destination and packing confirmed with the quotation |
Working size, thickness, tolerances and lead time depend on the approved design, material, quantity and inspection scope. Identify critical features and the applicable measurement conditions on the drawing so the quotation can confirm a practical acceptance basis.
What is sheet metal fabrication for this application?
Laser cutting follows a digital profile through metal sheet or plate to make outlines, holes and slots. The selected stock, feature size and edge specification determine whether a part can be used as cut or needs secondary processing.
For this product, the process is applied to prepare detailed flat patterns for machinery and enclosure assemblies. The particular review priorities are small cutouts, hole spacing, narrow webs and deburring; those details connect the manufacturing steps to the equipment's assembly requirements.
REALJET manufacturing advantages for this application
Review before release
The drawing revision, component function and mating interfaces establish a shared manufacturing reference before production begins.
Process matched to the part
Cutting requirements are connected to the next manufacturing step, including bends, threads, welding preparation or a visible edge finish.
Clear acceptance points
Inspection scope focuses on profile dimensions, hole geometry and cut-edge condition, together with the critical characteristics identified by the buyer.
Controlled repeat supply
Approved samples, material choices and drawing changes are recorded against the part number so subsequent orders can refer to the same release condition.
Fabrication technology and production sequence
- Review profiles, units, material and drawing revisions.
- Plan nesting and cut-path features.
- Cut profiles with the selected process settings.
- Remove burrs and complete agreed secondary operations.
- Inspect critical contours and package flat parts.
The final route is selected during technical review. Additional operations, purchased fittings and testing are included only where agreed in the order scope. Mark precision interfaces explicitly; a nominal hole in a cutting file does not define the required final fit.
Materials, finish and delivered condition
Material selection for CNC cut sheet metal profiles can include specified steel, stainless steel or aluminum sheet. The choice must reflect the actual application, rather than relying on the appearance or colour of the example image.
Review coating, plating or a bare-metal finish against the specified material and environment. Identify appearance zones, threads, grounding contacts and fitted surfaces before defining masking and finishing requirements.
Inspection and quality documentation
Distinguish laser-cut features from those needing secondary machining; sheet thickness influences achievable detail. The inspection plan should address profile dimensions, hole geometry and cut-edge condition, with critical dimensions and test methods identified before production release.
Agree whether the order requires material identification records, dimensional reports, sample approval or additional tests. Any specified certification, qualification or compliance evidence is reviewed for the actual supply scope before order acceptance. Packaging should protect finished surfaces and the geometric features used to install the part.
About REALJET component supply
REALJET supports machinery manufacturers and equipment integrators with drawing-based component supply. We coordinate the requested manufacturing operations, fit requirements, finishing and delivery condition around the customer's assembly needs. Explore our OEM contract manufacturing and made-to-drawing fabrication service for a wider fabrication and assembly package.
Questions about CNC cut sheet metal profiles
What should I show on the drawing?
Identify small cutouts, hole spacing, narrow webs and deburring, together with the part number, revision and mating references. Provide a dimensioned PDF and available STEP, DXF or DWG files as appropriate to the component. Mark precision interfaces explicitly; a nominal hole in a cutting file does not define the required final fit.
Which material and finish should I request?
Start with specified steel, stainless steel or aluminum sheet. Describe the operating environment and identify any functional or visible surfaces. The material, manufacturing route and finish are reviewed together before the quotation is finalized.
What needs particular attention on this project?
Distinguish laser-cut features from those needing secondary machining; sheet thickness influences achievable detail. State the acceptance method for any critical characteristic, and confirm whether the order includes only the component or additional hardware and assembly operations.
Can I order an initial sample before repeat production?
A prototype or pilot batch can be reviewed against the design and requested quantity. Agree sample acceptance, any required test evidence and the revision to be used for the subsequent order. Lead time is confirmed after the scope and material availability are checked.
Related component examples
Custom Laser Cut and Formed Equipment Parts · Custom Sheet Metal Laser Cutting Service · Custom Laser Cut Custom Metal Components
Discuss your CNC cut sheet metal profiles project
Send the drawing, material, quantity and required delivery date, together with small cutouts, hole spacing, narrow webs and deburring, to sales@realjetech.com. Identify critical tolerances, finishing and inspection requirements so we can review the quotation scope.
