Custom OEM supply to your drawings
REALJET provides custom equipment mounting brackets to your drawings for OEM and contract manufacturing orders. We review fastener pattern, offset and installation clearance before confirming the custom manufacturing scope. The manufacturing definition starts with the part's function, its installation space and the components it connects to. We review the requested geometry and delivery condition against those interfaces before defining the supply scope.

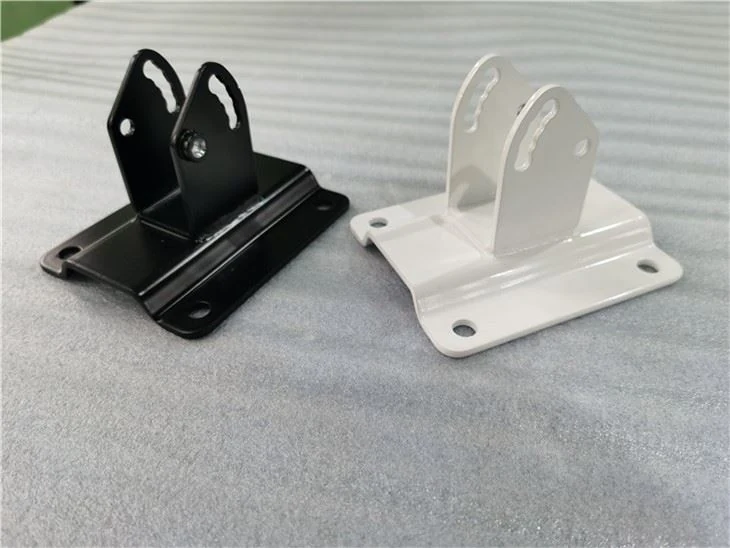

For this application, the drawing review focuses on fastener pattern, offset and installation clearance. Share mating-part details so the bracket geometry can be checked in assembly. A photograph provides a configuration example; your approved documentation defines the material, dimensions, performance requirements and acceptance criteria for the ordered component.
Application fit
Fastener pattern, offset and installation clearance are reviewed against the equipment arrangement.
Material selection
Review steel, stainless steel or aluminum to drawing against the design, process route and required delivery condition.
Acceptance focus
Share mating-part details so the bracket geometry can be checked in assembly.
Project specification and quotation inputs
| Item | Information to confirm |
|---|---|
| Component / service | Custom Equipment Mounting Brackets |
| Material options | Steel, stainless steel or aluminum to drawing |
| Geometry and interfaces | Fastener pattern, offset and installation clearance |
| Production scope | Bracket fabrication with agreed secondary operations |
| Inspection focus | Connection-face alignment, reinforcement details and fastener access |
| Quantity | Prototype, pilot batch or repeat order quantity for review |
| Supply condition | Loose component, part set or assembly as specified |
| Delivery | Schedule, destination and packing confirmed with the quotation |
Working size, thickness, tolerances and lead time depend on the approved design, material, quantity and inspection scope. Identify critical features and the applicable measurement conditions on the drawing so the quotation can confirm a practical acceptance basis.
What is sheet metal fabrication for this application?
A fabricated bracket uses cut profiles, bends and sometimes welded reinforcement to connect two mounting interfaces. Its function depends on the relationship between those interfaces and the loads transmitted through the installation.
For this product, the process is applied to locate an equipment component between two defined mounting interfaces. The particular review priorities are fastener pattern, offset and installation clearance; those details connect the manufacturing steps to the equipment's assembly requirements.
REALJET manufacturing advantages for this application
Review before release
The drawing revision, component function and mating interfaces establish a shared manufacturing reference before production begins.
Process matched to the part
Hole patterns, mounting faces and tool access are reviewed together so fasteners can be installed without unplanned interference.
Clear acceptance points
Inspection scope focuses on connection-face alignment, reinforcement details and fastener access, together with the critical characteristics identified by the buyer.
Controlled repeat supply
Approved samples, material choices and drawing changes are recorded against the part number so subsequent orders can refer to the same release condition.
Fabrication technology and production sequence
- Review mating parts, load direction and attachment method.
- Profile the blank and prepare hole features.
- Form the connection faces and add specified reinforcement.
- Complete joining and surface treatment.
- Check angles, offsets and hole positions against datums.
The final route is selected during technical review. Additional operations, purchased fittings and testing are included only where agreed in the order scope. Provide loading and mounting information where structural performance is part of the component design.
Materials, finish and delivered condition
Material selection for custom equipment mounting brackets can include steel, stainless steel or aluminum to drawing. The choice must reflect the actual application, rather than relying on the appearance or colour of the example image.
Review coating, plating or a bare-metal finish against the specified material and environment. Identify appearance zones, threads, grounding contacts and fitted surfaces before defining masking and finishing requirements.
Inspection and quality documentation
Share mating-part details so the bracket geometry can be checked in assembly. The inspection plan should address connection-face alignment, reinforcement details and fastener access, with critical dimensions and test methods identified before production release.
Agree whether the order requires material identification records, dimensional reports, sample approval or additional tests. Any specified certification, qualification or compliance evidence is reviewed for the actual supply scope before order acceptance. Packaging should protect finished surfaces and the geometric features used to install the part.
About REALJET component supply
REALJET supports machinery manufacturers and equipment integrators with drawing-based component supply. We coordinate the requested manufacturing operations, fit requirements, finishing and delivery condition around the customer's assembly needs. Explore our OEM contract manufacturing and made-to-drawing fabrication service for a wider fabrication and assembly package.
Questions about custom equipment mounting brackets
What should I show on the drawing?
Identify fastener pattern, offset and installation clearance, together with the part number, revision and mating references. Provide a dimensioned PDF and available STEP, DXF or DWG files as appropriate to the component. Provide loading and mounting information where structural performance is part of the component design.
Which material and finish should I request?
Start with steel, stainless steel or aluminum to drawing. Describe the operating environment and identify any functional or visible surfaces. The material, manufacturing route and finish are reviewed together before the quotation is finalized.
What needs particular attention on this project?
Share mating-part details so the bracket geometry can be checked in assembly. State the acceptance method for any critical characteristic, and confirm whether the order includes only the component or additional hardware and assembly operations.
Can I order an initial sample before repeat production?
A prototype or pilot batch can be reviewed against the design and requested quantity. Agree sample acceptance, any required test evidence and the revision to be used for the subsequent order. Lead time is confirmed after the scope and material availability are checked.
