Custom OEM supply to your drawings
REALJET provides custom stainless steel laser cut profiles to your drawings for OEM and contract manufacturing orders. We review internal contours, cut-edge condition and protective film handling before confirming the custom manufacturing scope. The manufacturing definition starts with the part's function, its installation space and the components it connects to. We review the requested geometry and delivery condition against those interfaces before defining the supply scope.

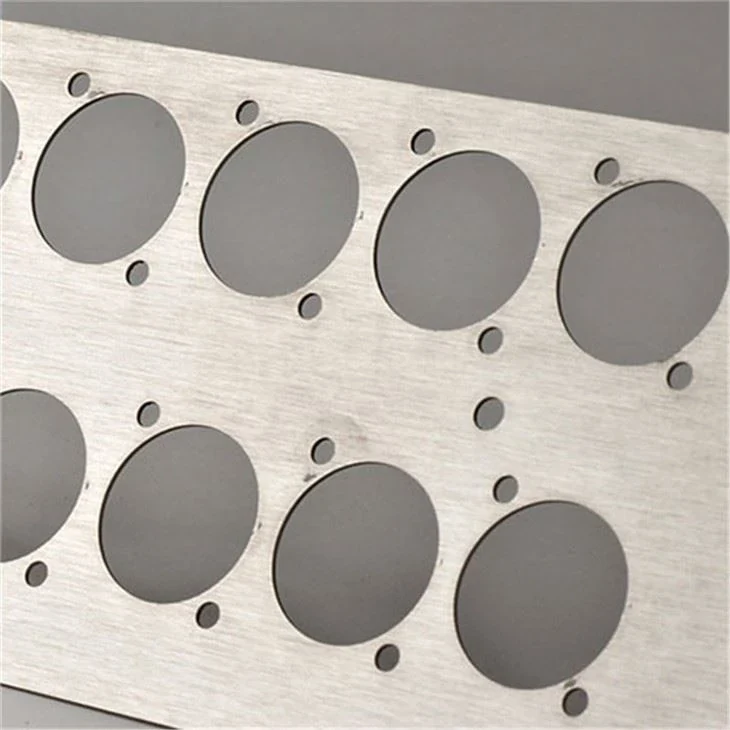

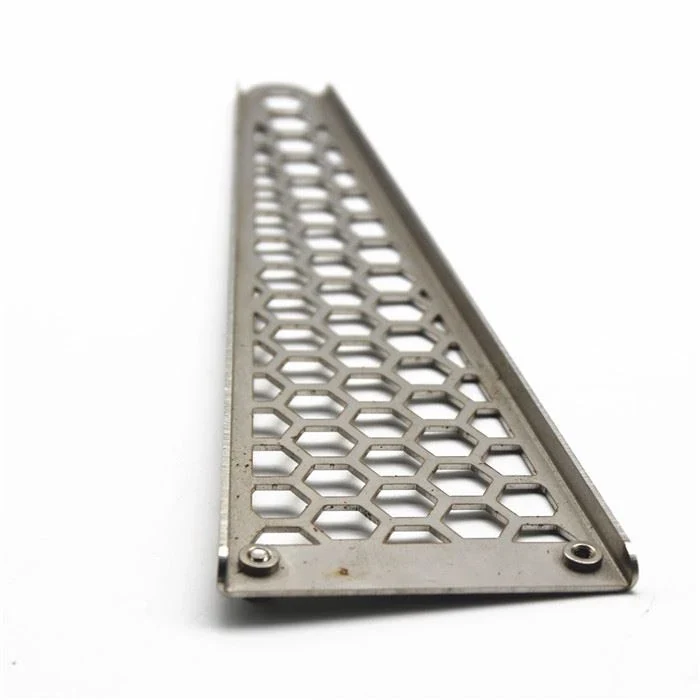

For this application, the drawing review focuses on internal contours, cut-edge condition and protective film handling. State whether the part is supplied as-cut, deburred or prepared for welding and forming. A photograph provides a configuration example; your approved documentation defines the material, dimensions, performance requirements and acceptance criteria for the ordered component.
Application fit
Internal contours, cut-edge condition and protective film handling are reviewed against the equipment arrangement.
Material selection
Review specified stainless steel sheet or plate against the design, process route and required delivery condition.
Acceptance focus
State whether the part is supplied as-cut, deburred or prepared for welding and forming.
Project specification and quotation inputs
| Item | Information to confirm |
|---|---|
| Component / service | Stainless Steel Laser Cut Profiles |
| Material options | Specified stainless steel sheet or plate |
| Geometry and interfaces | Internal contours, cut-edge condition and protective film handling |
| Production scope | Laser-cut component manufacture with agreed secondary operations |
| Inspection focus | Profile dimensions, hole geometry and cut-edge condition |
| Quantity | Prototype, pilot batch or repeat order quantity for review |
| Supply condition | Loose component, part set or assembly as specified |
| Delivery | Schedule, destination and packing confirmed with the quotation |
Working size, thickness, tolerances and lead time depend on the approved design, material, quantity and inspection scope. Identify critical features and the applicable measurement conditions on the drawing so the quotation can confirm a practical acceptance basis.
What is sheet metal fabrication for this application?
Laser cutting follows a digital profile through metal sheet or plate to make outlines, holes and slots. The selected stock, feature size and edge specification determine whether a part can be used as cut or needs secondary processing.
For this product, the process is applied to cut stainless profiles for brackets, panels and assembly plates. The particular review priorities are internal contours, cut-edge condition and protective film handling; those details connect the manufacturing steps to the equipment's assembly requirements.
REALJET manufacturing advantages for this application
Review before release
The drawing revision, component function and mating interfaces establish a shared manufacturing reference before production begins.
Process matched to the part
Cutting requirements are connected to the next manufacturing step, including bends, threads, welding preparation or a visible edge finish.
Clear acceptance points
Inspection scope focuses on profile dimensions, hole geometry and cut-edge condition, together with the critical characteristics identified by the buyer.
Controlled repeat supply
Approved samples, material choices and drawing changes are recorded against the part number so subsequent orders can refer to the same release condition.
Fabrication technology and production sequence
- Review profiles, units, material and drawing revisions.
- Plan nesting and cut-path features.
- Cut profiles with the selected process settings.
- Remove burrs and complete agreed secondary operations.
- Inspect critical contours and package flat parts.
The final route is selected during technical review. Additional operations, purchased fittings and testing are included only where agreed in the order scope. Mark precision interfaces explicitly; a nominal hole in a cutting file does not define the required final fit.
Materials, finish and delivered condition
Material selection for stainless steel laser cut profiles can include specified stainless steel sheet or plate. The choice must reflect the actual application, rather than relying on the appearance or colour of the example image.
Review coating, plating or a bare-metal finish against the specified material and environment. Identify appearance zones, threads, grounding contacts and fitted surfaces before defining masking and finishing requirements.
Inspection and quality documentation
State whether the part is supplied as-cut, deburred or prepared for welding and forming. The inspection plan should address profile dimensions, hole geometry and cut-edge condition, with critical dimensions and test methods identified before production release.
Agree whether the order requires material identification records, dimensional reports, sample approval or additional tests. Any specified certification, qualification or compliance evidence is reviewed for the actual supply scope before order acceptance. Packaging should protect finished surfaces and the geometric features used to install the part.
About REALJET component supply
REALJET supports machinery manufacturers and equipment integrators with drawing-based component supply. We coordinate the requested manufacturing operations, fit requirements, finishing and delivery condition around the customer's assembly needs. Explore our OEM contract manufacturing and made-to-drawing fabrication service for a wider fabrication and assembly package.
Questions about stainless steel laser cut profiles
What should I show on the drawing?
Identify internal contours, cut-edge condition and protective film handling, together with the part number, revision and mating references. Provide a dimensioned PDF and available STEP, DXF or DWG files as appropriate to the component. Mark precision interfaces explicitly; a nominal hole in a cutting file does not define the required final fit.
Which material and finish should I request?
Start with specified stainless steel sheet or plate. Describe the operating environment and identify any functional or visible surfaces. The material, manufacturing route and finish are reviewed together before the quotation is finalized.
What needs particular attention on this project?
State whether the part is supplied as-cut, deburred or prepared for welding and forming. State the acceptance method for any critical characteristic, and confirm whether the order includes only the component or additional hardware and assembly operations.
Can I order an initial sample before repeat production?
A prototype or pilot batch can be reviewed against the design and requested quantity. Agree sample acceptance, any required test evidence and the revision to be used for the subsequent order. Lead time is confirmed after the scope and material availability are checked.
Related component examples
Custom Laser Cut and Formed Equipment Parts · Custom CNC Cut Sheet Metal Profiles · Custom Sheet Metal Laser Cutting Service
Discuss your stainless steel laser cut profiles project
Send the drawing, material, quantity and required delivery date, together with internal contours, cut-edge condition and protective film handling, to sales@realjetech.com. Identify critical tolerances, finishing and inspection requirements so we can review the quotation scope.
