Equipment combinations for farm roads, produce collection yards, livestock facilities and irrigation works.
View Agricultural SolutionsEquipment Features
Walk-Behind Machines
For smaller floors, edges and areas where a ride-on machine has limited access.
Ride-On Machines
Seated operation with twin finishing assemblies for larger open floor areas.
Finish to Suit the Floor
Choose blades, pans and finishing timing for the concrete and specified surface. Wet livestock areas may require a textured finish instead of a smooth trowelled surface.
Models & Specifications
Catalogue reference specifications. Confirm the final machine configuration and technical schedule with your quotation.
Walk-Behind Models
| Configuration | Disc diameter (mm) | Blade size (mm) | Disc speed (rpm) | Weight (kg) |
|---|---|---|---|---|
| 60–90 series | 580–880 | 320 × 150 | 100 | 60 |
| 100 standard | 980 | 340 × 150 | 150 | 80 |
| 100 chrome-finish | 980 | 340 × 150 | 150 | 80 |
| 100 with transport wheels | 980 | 340 × 150 | 140 | 70 |
100 Series Ride-On Models
| Layout | Engine references | Disc diameter (mm) | Weight (kg) | Dimensions L × W × H (mm) |
|---|---|---|---|---|
| Upright | GX690 / 2V78 | 950 | 346 | 2,000 × 1,000 × 1,350 |
| Horizontal | 192 / GX690 | 1000 | 340 | 1,980 × 1,030 × 1,050 |
| Dual-engine | 168 / 173 | 1000 | 250 | 1,960 × 980 × 1,100 |
Engine references identify catalogue alternatives. Confirm fuel type and the exact engine in the quotation.
120 Hydraulic Ride-On
| Specification | Catalogue reference |
|---|---|
| Engine type | Four-stroke, air-cooled petrol |
| Rated power | 25.4 kW / 34 hp |
| Maximum engine speed | 3,600 rpm |
| Fuel tank | 40 L |
| Machine weight | 598 kg |
| Dimensions L × W × H | 2,540 × 1,240 × 1,480 mm |
3,600 rpm is the engine speed, not the finishing-disc speed.
Ride-On Configuration

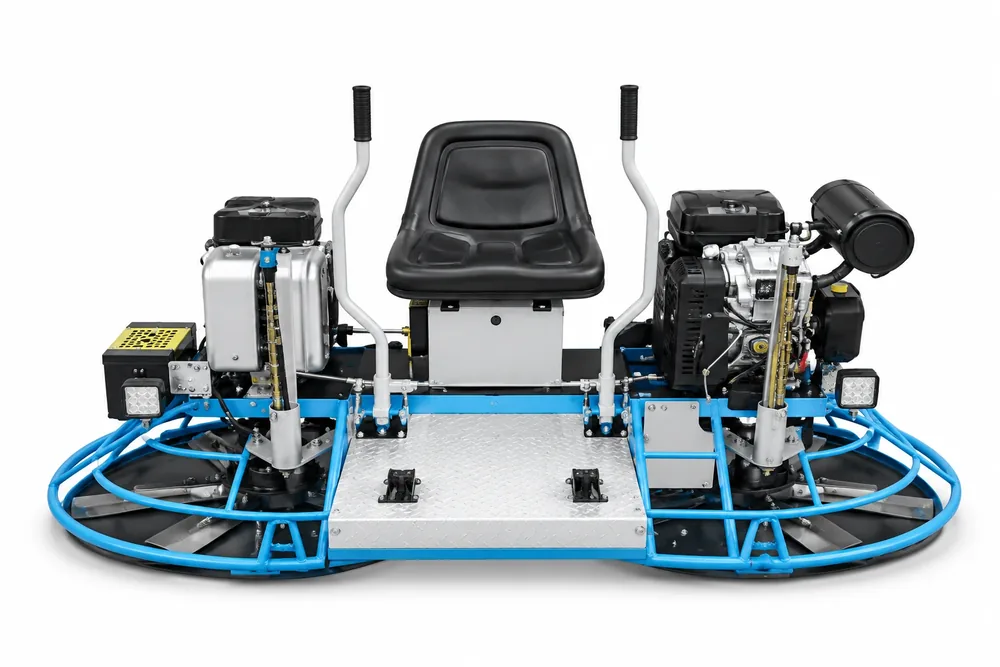

Dual-Engine Ride-On Trowel
Reference equipment image showing seated controls and two finishing assemblies.
Choosing Your Configuration
Floor area and access
Open floor area, columns, door widths and edges.
Surface specification
Required smoothness, slip resistance, floor use and finishing method.
Concrete and timing
Mix characteristics, setting conditions and the planned finishing window.
Operating requirements
Operator experience, fuel choice, lifting arrangements and wear parts.
Request an Equipment Quote
Share the destination country, application, preferred configuration and quantity. Add site photos or drawings where available.
