Equipment combinations for farm roads, produce collection yards, livestock facilities and irrigation works.
View Agricultural SolutionsEquipment Features
On-site concrete supply
Combine material loading, mixing and discharge in one mobile machine. Plan aggregate, cement and clean-water supplies around the work area.
Six capacity classes
Compare capacity, machine weight and water storage against the pour size and site access.
Controlled discharge
Position the machine and discharge chute to suit the pour. Confirm the chute and control arrangement for the selected configuration.
Models & Specifications
Catalogue reference specifications. Confirm the final machine configuration and technical schedule with your quotation.
Capacity and Power
| Capacity class (m³) | Engine power (kW) | Machine weight (kg) | Water tank (L) |
|---|---|---|---|
| 1.5 | 58 | 4500 | 550 |
| 2 | 76 | 6000 | 750 |
| 2.6 | 78 | 6500 | 580 |
| 3.5 | 85 | 8260 | 850 |
| 4 | 91 | 9400 | 920 |
| 5 | 92 | 10500 | 1100 |
Capacity classes are the brochure designations. Confirm effective batch output for the selected machine.
3.5 m³ Configuration Details
The following features are documented for the 3.5 m³ reference configuration; availability depends on the selected build.

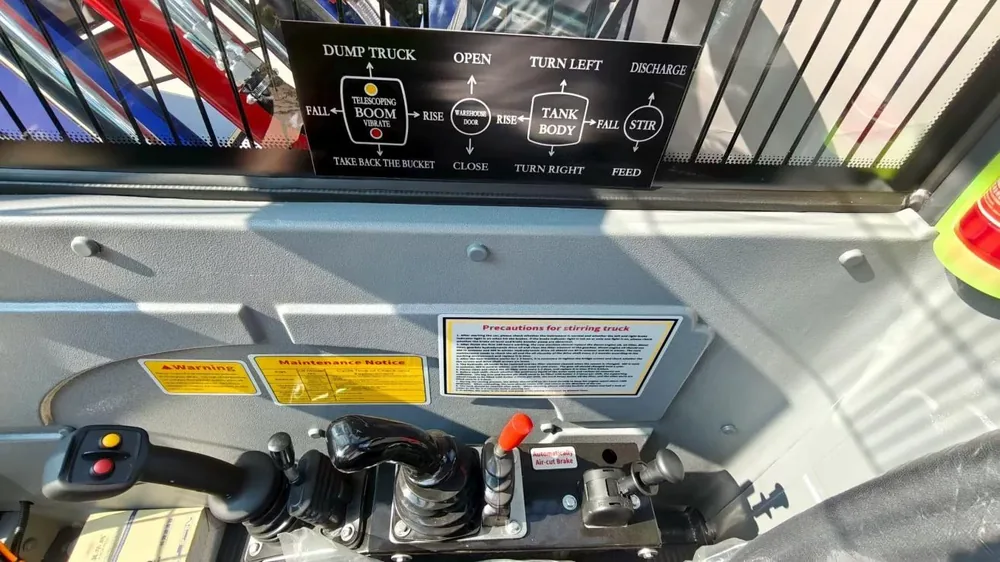

Hydraulic Pilot Controls
Cab-mounted controls for loading operations.

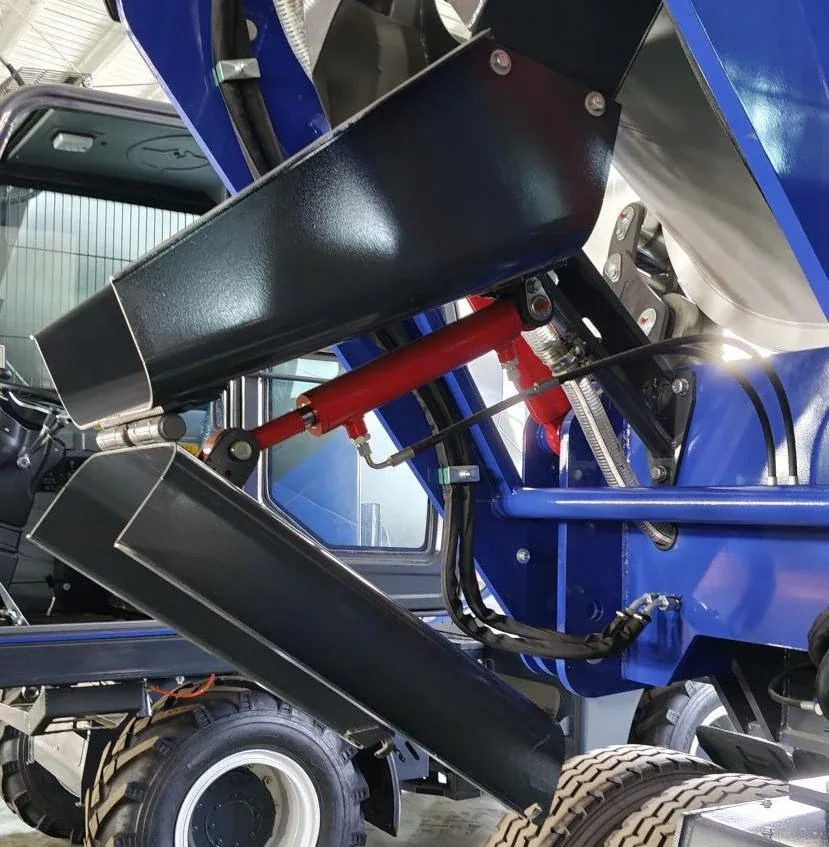

Extending Discharge Chute
Hydraulic extension and cab-operated discharge positioning.

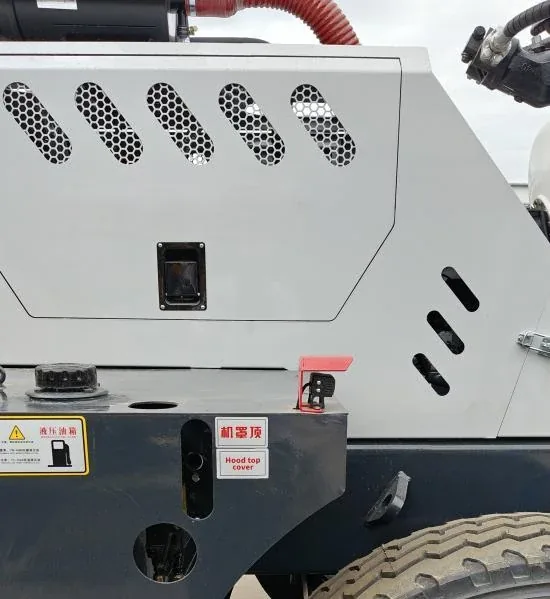

Engine Access
Hydraulically opening engine cover for service access.

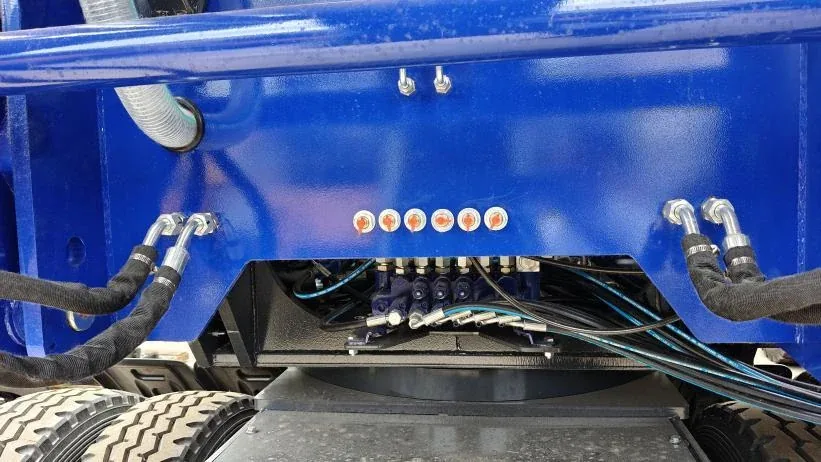

Accessible Grease Points
Externally routed lubrication points for routine servicing.
Choosing Your Configuration
Concrete demand
Required concrete volume per day and typical pour size.
Access and ground conditions
Entrance width, gradients, turning space and ground bearing conditions.
Materials and water
Aggregate grading, cement supply, water availability and mix-control requirements.
Delivery configuration
Engine specification, control arrangement, destination requirements and spare parts.
Request an Equipment Quote
Share the destination country, application, preferred configuration and quantity. Add site photos or drawings where available.
