Explore the production linePulling equipment for a defined transfer route

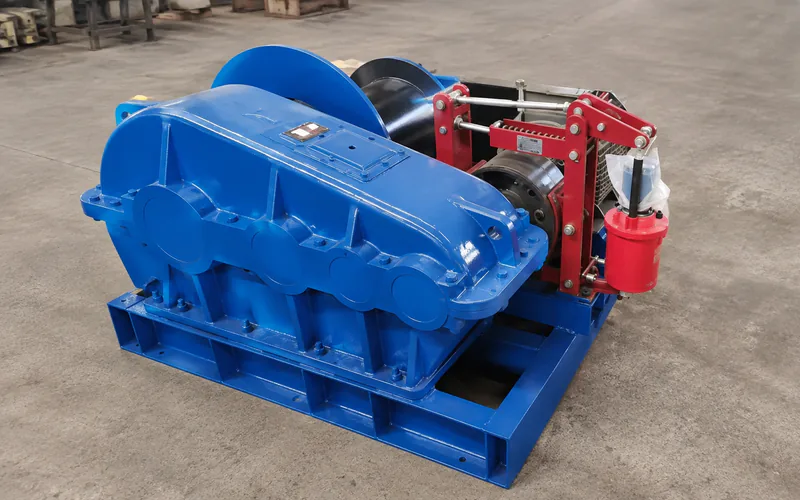

A material transfer winch supplies pulling force along an agreed route in the spun pile plant. It may serve a trolley or another defined transfer duty, with the rope path and anchoring coordinated to the layout.
A winch can provide the pulling force for a trolley or another agreed material-transfer application. Rope routing, travel distance and load resistance determine the arrangement; the supplied configuration must be matched to the intended pulling duty.
Configuration and integration
- Required line pull and operating duty
- Rope capacity and travel distance
- Drum, guide and anchoring arrangement
- Braking, travel limits and control positions
Information for equipment selection
Moving load, rolling resistance or gradient, route length, rope routing and required operating speed.
Selection questions
Is the winch specified here for overhead lifting?
This page describes a pulling application. Any lifting application requires its own equipment selection and confirmed load, braking and operating requirements; a pulling arrangement should not be assumed suitable for lifting.
Can line pull be selected from trolley mass alone?
No. Route gradients, rolling resistance, starting conditions and rope routing affect the pulling requirement. Provide the moving load and route information together with the required speed and operating frequency.
Supply and project coordination
Realjet can include the winch in a coordinated spun pile equipment package or review it for an existing production line. Equipment dimensions, capacity, controls and supply boundaries are confirmed against the project requirements before an equipment proposal is finalized.
For project preparation, review our equipment package scope guide. To discuss this equipment, use the product enquiry button and include your drawings and selection inputs listed above.
