The mix is usually chosen after the line is specified
A precast plant is planned around a product, an output and a building. The concrete mix often arrives later, from the producer's own laboratory or from a ready-mix supplier who wins the tender. When that mix turns out to be self-consolidating, part of the equipment package no longer fits the process.
Self-consolidating concrete, also called self-compacting concrete or SCC, flows into place under its own weight. It fills a mould and encapsulates reinforcement without poker vibration. That single property removes a whole category of equipment and adds requirements to another, mostly the moulds. Buyers who settle the mix early avoid paying for casting stations and vibration units that the process does not need, and avoid discovering that a mould ordered for vibrated concrete is too light for what will be poured into it.
What makes a mix self-consolidating
Three properties have to hold at once. The mix must flow far enough to fill the mould, it must resist segregation while it flows, and it must pass through congested reinforcement without blocking. Those are measured with the slump flow test, the V funnel or T50 time, and a passing ability test such as the L box or J ring.
The European guidance that most specifications refer to is the EFNARC document, now usually cited through national annexes. It sets out the test methods, the classes and the acceptance criteria in the European guidelines for self-compacting concrete. ACI 237R covers the same ground for American practice and is the reference when a project specifies to ACI.
For a buyer, the important point is that SCC is not a stronger or better concrete by definition. It is a different rheology, achieved with more paste, a superplasticiser and usually a viscosity modifying admixture or a filler. Strength class and durability class are chosen separately, and a well designed SCC can meet the same exposure class as a vibrated mix.
Form pressure is the line item that changes
Fresh concrete pushes sideways on a mould. For vibrated concrete, the pressure depends on the rate of rise, because the mix starts to build structure and support itself as it stiffens. A mould designed for that behaviour can be relatively light.
SCC arrives at the form face as a fluid and stays fluid longer. The EFNARC guidelines are direct about the consequence: formwork design, including supports and fixings, should normally assume that the full hydrostatic concrete pressure is applied, and pressure below hydrostatic is only used on the basis of trials and agreement between the parties. The Danish execution guideline for SCC makes the same recommendation and gives the arithmetic: a 5 m pour at 10 m per hour approaches 120 kN/m² at the base, against roughly 40 to 50 kN/m² for conventional wall formwork.

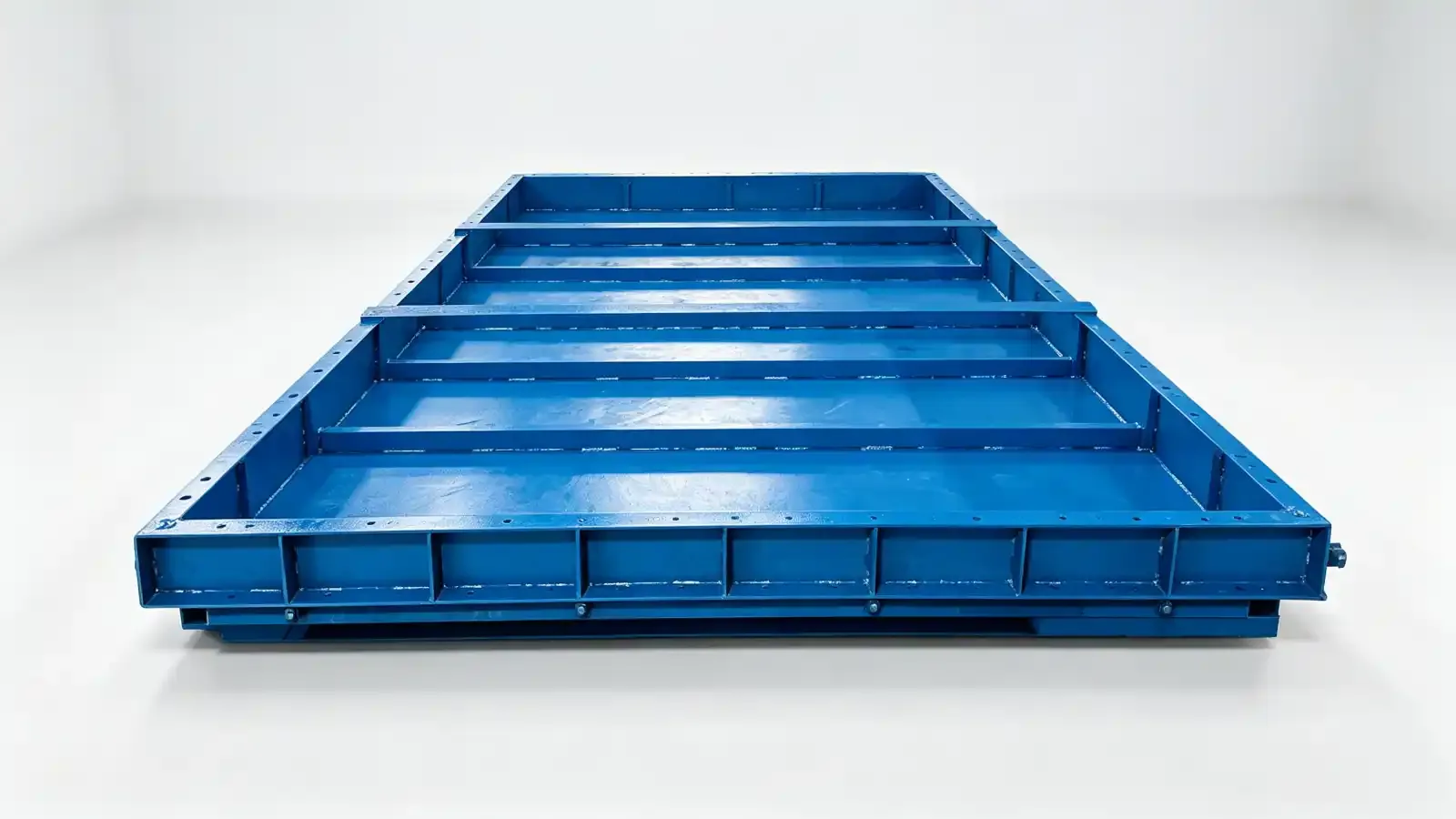

That is a design load, and a mould structure sized for a lower pressure will deflect under it. In practice the requirement reaches the mould order as side form framing depth, tie rod spacing, hinge and clamp specification, and base fixing. A mould built for vibrated concrete and re-used for SCC is being asked to work outside its design basis, and the failure mode is deflection rather than collapse, which shows up as a bulged face and a component outside tolerance.
If the mix is not settled when the mould is ordered, say so, and ask the mould supplier which pressure basis the design assumes. An answer that refers only to a standard mould does not address the question.
Tightness becomes a structural requirement
SCC finds its way out of a mould more easily than vibrated concrete. The Danish guideline notes that a crack a few millimetres wide is enough for paste to escape, with honeycombing and contamination of adjacent work as the result, and that tightness requirements are generally higher than for vibrated concrete.
On a precast mould this is a joint discipline rather than a material choice. The joints that matter are the ones between side forms and soffit, between fixed and opening panels, around end plates and around every blockout. Segmental and box section moulds, which carry more joints than a flat slab mould, feel this most.
The buyer's lever is the specification: state that the mould must be tight enough for a self-consolidating mix, and ask how the joints are sealed and how the seal is maintained through the production cycle. A gasket that compresses once and takes a set is not a seal.
Inserts, void formers and buoyancy
A mix this fluid floats anything buoyant. The EFNARC guidance warns that high flowability can float formwork units, stop ends and detailing that are not securely fixed, and that fixing and sealing to the base need particular attention where uplift is possible.
On a real mould that means cast-in sockets, lifting inserts, duct formers, corner fillets and any polystyrene void former has to be held down against a calculated uplift, not against habit. Asymmetric filling, for instance pouring down one side of a deep web, adds a horizontal component that can shift a side form.
Ask for the fixing method for each embedded item in the mould, and ask what holds it during a pour that may be three to five times faster than a vibrated pour.
Placing method and casting rate

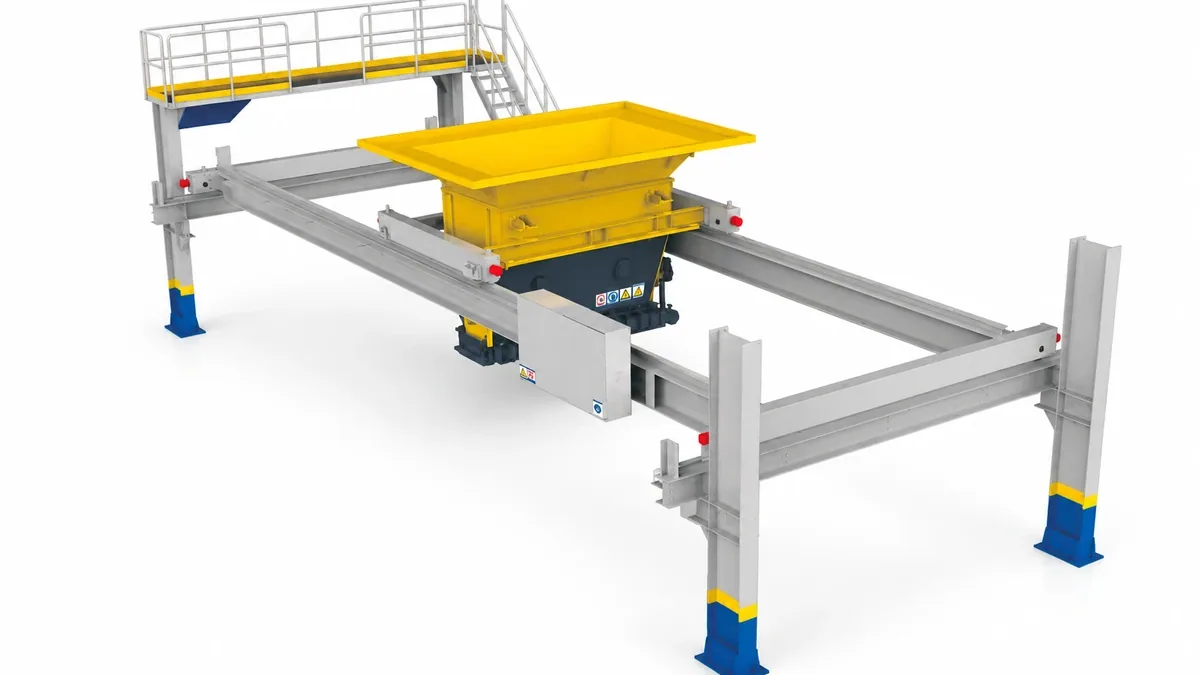

SCC can be placed from a bucket, from a distributor, or pumped from the bottom of the mould. The method changes the pressure story. EFNARC notes that pumping from the bottom can put local pressure above hydrostatic near the entry point, especially on a restart after an interruption.
Casting rate is the other half of the calculation. SCC pours are usually continuous because a stop creates a cold joint in a mix that cannot be vibrated back into a homogeneous mass. A continuous pour at a high rate is precisely the case that generates full hydrostatic pressure at the base.
For the line, this argues for a casting system that can deliver the required volume without a break: batching capacity, admixture dosing accuracy, and a placing device sized to the pour. A line specified around 1 m per hour of vibrated concrete is not automatically able to feed a 10 m per hour SCC pour, and the gap is in the batching plant and the transfer equipment rather than in the mould.
The form face shows everything
SCC reproduces the form face. That is an advantage for architectural work and a hard test for a mould. The EFNARC guidance points out that it shows up any deficiency in the form material, the finish or the release agent, and that movement or bending under pressure is more visible than with vibrated concrete.
Release agent behaviour changes with SCC as well. Because the mix is less permeable and the form face is often non-absorbent steel, excess release agent can stain the surface or trap air, and a viscous agent on an impermeable face can leave blowholes. Thin application, and an agent matched to an impermeable form, matter more than they do with a vibrated mix. The article on vibration and compaction on a precast production line covers the conventional route, where the trade-off runs the other way.
Equipment that disappears, equipment that appears
The saving is easy to describe. Poker vibrators, vibration motors on the mould, some of the casting labour and the finishing that follows a vibrated pour all reduce or disappear. Surface finish often improves without extra work.
The additions are less obvious and belong in the enquiry:
- Batching and dosing accuracy tight enough to hold slump flow within a narrow band, pour after pour.
- Mixing time and mixer type suited to a high paste mix.
- A testing station for slump flow, T50 and passing ability at the plant, with the staff to run it.
- Moulds designed to the hydrostatic pressure basis, with sealed joints and calculated insert fixing.
- A placing system sized for a continuous high rate pour.
What to write in the enquiry
| Item | What to state | Why |
|---|---|---|
| Mix type and who designs it | SCC or vibrated, and whether the producer or the line supplier owns the mix design | The mix governs the mould pressure basis and the equipment list |
| Rheology targets | Slump flow class, viscosity class and passing ability requirement | Turns "SCC" into a testable acceptance criterion |
| Form pressure basis | Full hydrostatic, or a reduced basis supported by trials | Decides the mould structure and the tie spacing |
| Casting rate and continuity | Metres per hour, and whether the pour may be interrupted | Sets the batching and placing capacity required |
| Mould tightness | Joint sealing method and the standard it must meet | Prevents paste loss and honeycombing |
| Embedded item fixing | Method and uplift basis for each insert type | Fluid mixes float anything not held down |
| Release agent | Type suited to an impermeable form, and application rate | Controls blowholes and staining |
Who owns which decision
| Decision | Owner | Why it sits there |
|---|---|---|
| Mix design and rheology class | Producer, or the line supplier if the package includes mix support | It is a concrete technology decision, and the producer runs the plant |
| Form pressure basis for the moulds | Mould supplier, approved by the buyer | It is the design load for the mould structure |
| Casting rate and pour continuity | Buyer, with the line supplier | Follows from output targets and shift pattern |
| Batching and dosing accuracy | Line supplier, within the agreed tolerance | Part of the equipment specification |
| Testing regime at the plant | Buyer specifies, supplier proposes | Defines what acceptance means |
| Compliance of supplied concrete | Producer | The line supplier does not control the mix unless the contract says so |
Where to take the question
The mix decision is cheapest to take before the moulds are ordered and before the batching plant is sized. A buyer who states SCC, its rheology class and the intended casting rate gives every supplier the same basis, and finds out early whether the mould structure, the joints and the placing equipment all belong in the same package.
Realjet delivers precast production lines as project packages covering casting equipment, moulds and the interfaces to batching, curing and handling. The precast beam factory line page describes how that scope is put together, and the article on wet cast and dry cast lines covers the process choice that usually sits just before this one.
