Agricultural & Rural Applications
Agricultural logistics yards
Wide, open concrete bays serving produce handling and vehicle movements.
Agricultural industrial parks
Larger road and hardstanding projects with coordinated concrete supply.
Equipment Features
Wider paving spans
Catalogue configurations cover 3–18 m or 8–20 m depending on frame type.
Frame alternatives
Compare large single-layer, double-layer and heavy-frame arrangements against the required span.
Contractor applications
Plan lifting, transport, support installation and electrical supply with the paving method.
Models & Specifications
Catalogue reference specifications. Confirm the final machine configuration and technical schedule with your quotation.

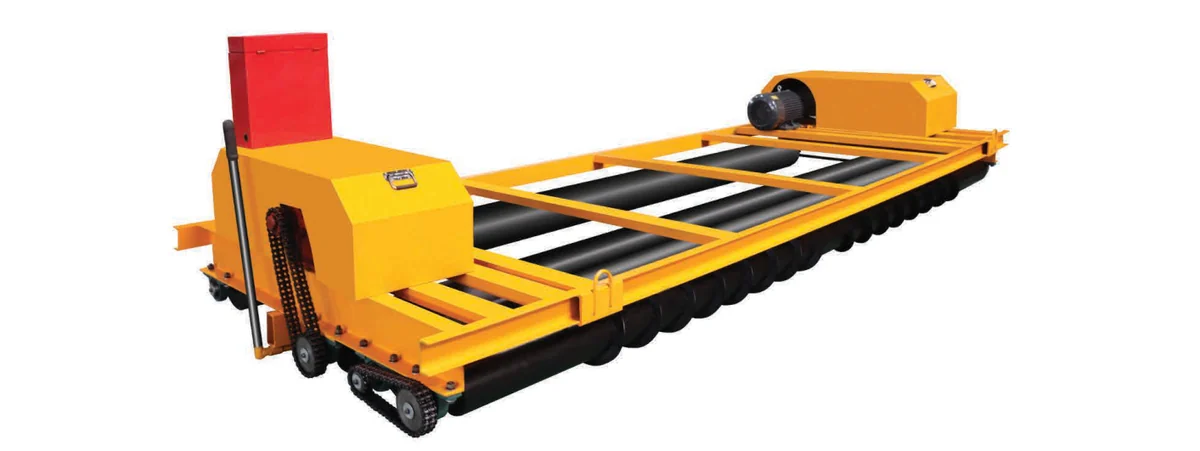

Large-Frame and Heavy Configurations
| Configuration | Working width (m) | Layer thickness (mm) | Travel drive (kW) |
|---|---|---|---|
| Three-roller, double-layer | 8–20 | 100–260 | 9–30 |
| Three-roller, single-layer large frame | 3–18 | 100–260 | 4–7.5 |
| Three-roller, double-layer large frame | 3–18 | 100–260 | 4–7.5 |
| Four-roller, single-layer large frame | 3–18 | 100–260 | 3–7.5 |
| Four-roller, heavy double-layer | 8–20 | 100–260 | 9–30 |
Catalogue travel speed: 10–20 m/min; vibration motor range: 3–18.5 kW. The 8–20 m configurations require project-specific handling and support planning.
Configuration Notes
Frame labels describe the catalogue variants; they do not confirm simultaneous placement of separate concrete courses. These machines generally require more site preparation than small rural repair work.
Choosing Your Configuration
Paving geometry
Provide the clear paving width, slab thickness, road crossfall and changes in width.
Concrete and supply
Confirm mix characteristics, delivery method and the concrete supply rate for each paving run.
Site support and power
Confirm edge supports or rails, handling space, voltage, frequency and total connected load.
Transport and configuration
Provide site access and loading arrangements. Confirm the actual machine span and shipping dimensions before ordering.
Request an Equipment Quote
Share the destination country, application, preferred configuration and quantity. Add site photos or drawings where available.
