Agricultural & Rural Applications
Farm access roads
Straight concrete routes for agricultural vehicles and produce transport.
Agricultural yard construction
Paved bays in cooperative collection yards and machinery service areas.
Equipment Features

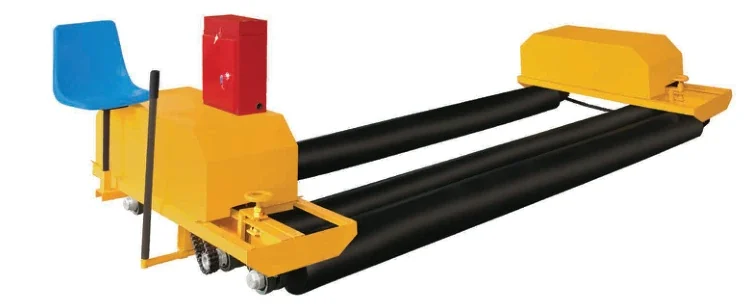

Three-roller arrangement
The catalogue describes front rollers for spreading and a rear roller for consolidation.
Span selection
Select the machine span around the actual paving bay and support details.
Electric drive
The catalogue lists a 4–7.5 kW travel-drive range; exact electrical requirements depend on configuration.
Models & Specifications
Catalogue reference specifications. Confirm the final machine configuration and technical schedule with your quotation.
Split-Frame Configuration
| Configuration | Working width (m) | Layer thickness (mm) | Travel drive (kW) |
|---|---|---|---|
| Three-roller, split frame | 3–18 | 100–260 | 4–7.5 |
Catalogue travel speed: 10–20 m/min; vibration motor range: 3–18.5 kW.
Configuration Notes
The 3–18 m range represents available configurations, not a confirmed on-site adjustment range for one machine. Narrower paving is subject to technical review.
Choosing Your Configuration
Paving geometry
Provide the clear paving width, slab thickness, road crossfall and changes in width.
Concrete and supply
Confirm mix characteristics, delivery method and the concrete supply rate for each paving run.
Site support and power
Confirm edge supports or rails, handling space, voltage, frequency and total connected load.
Transport and configuration
Provide site access and loading arrangements. Confirm the actual machine span and shipping dimensions before ordering.
Request an Equipment Quote
Share the destination country, application, preferred configuration and quantity. Add site photos or drawings where available.
