Agricultural & Rural Applications
Village and farm roads
Concrete road sections that match the selected machine span and support arrangement.
Cooperative yards
Straight bays in produce collection yards, farm machinery parking areas and drying yards.
Equipment Features
Compact single-frame option
The single-layer catalogue model covers widths of 3.5–6 m for straight paving runs.
Wider frame option
The double-layer catalogue model is listed for widths of 3.5–18 m. Confirm the frame and roller arrangement in the technical drawing.
Powered levelling
Motor-driven rollers spread and level fresh concrete within a prepared paving bay.
Models & Specifications
Catalogue reference specifications. Confirm the final machine configuration and technical schedule with your quotation.

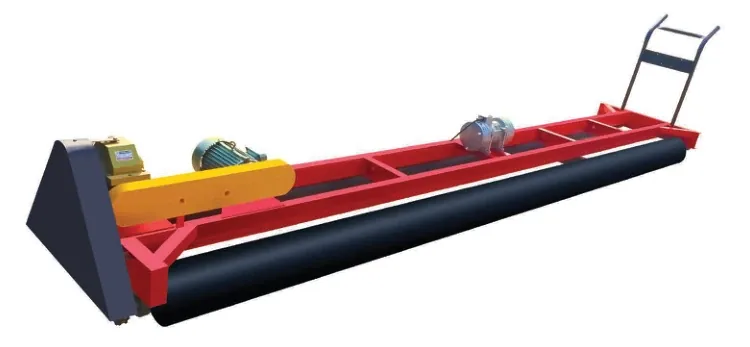

Two-Roller Configurations
| Configuration | Working width (m) | Layer thickness (mm) | Travel drive (kW) |
|---|---|---|---|
| Two-roller, single-layer | 3.5–6 | 100–260 | 3–7.5 |
| Two-roller, double-layer | 3.5–18 | 100–260 | 3–7.5 |
Catalogue vibration motor range: 3–18.5 kW; travel speed: 10–20 m/min. Confirm the installed motors for the selected width.
Configuration Notes
“Single-layer” and “double-layer” are catalogue configuration names. They do not establish a two-course concrete placement method. Widths below 3.5 m are not documented for these models.
Choosing Your Configuration
Paving geometry
Provide the clear paving width, slab thickness, road crossfall and changes in width.
Concrete and supply
Confirm mix characteristics, delivery method and the concrete supply rate for each paving run.
Site support and power
Confirm edge supports or rails, handling space, voltage, frequency and total connected load.
Transport and configuration
Provide site access and loading arrangements. Confirm the actual machine span and shipping dimensions before ordering.
Request an Equipment Quote
Share the destination country, application, preferred configuration and quantity. Add site photos or drawings where available.
