Agricultural & Rural Applications
Farm machinery sheds and stores
Finishing fresh concrete floors in enclosed or covered agricultural buildings.
Cooperative handling floors
Work areas and storage floors where a trowelled finish is specified.
Drying and collection yards
Use only where the specified finish also meets drainage and slip-resistance requirements.
Equipment Features
Smaller floor areas
Hand-guided operation suits smaller bays and spaces where ride-on equipment has limited access.
Disc-size options
The 60–90 series lists 580–880 mm discs; the 100 variants list a 980 mm disc.
Surface finish selection
Select blades, pans and finishing timing to match the required floor surface.
Models & Specifications
Catalogue reference specifications. Confirm the final machine configuration and technical schedule with your quotation.

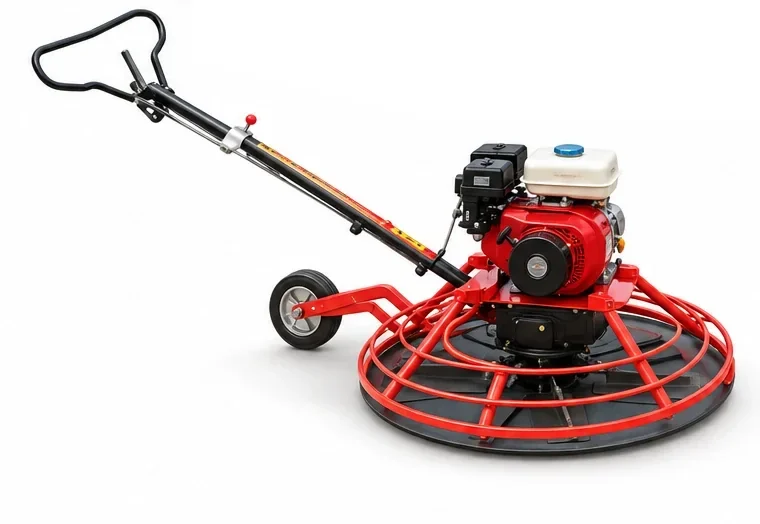

Walk-Behind Models
| Configuration | Disc diameter (mm) | Blade size (mm) | Disc speed (rpm) | Weight (kg) |
|---|---|---|---|---|
| 60–90 series | 580–880 | 320 × 150 | 100 | 60 |
| 100 standard | 980 | 340 × 150 | 150 | 80 |
| 100 chrome-finish | 980 | 340 × 150 | 150 | 80 |
| 100 with transport wheels | 980 | 340 × 150 | 140 | 70 |
Configuration Notes
The catalogue lists 150 m²/h for the 60–90 series and 220 m²/h for the 100 variants. These are reference claims, not site-output guarantees. The “weighted with wheels” variant is listed at 70 kg versus 80 kg for the standard model; confirm actual weight rather than assuming it is heavier.
Choosing Your Configuration
Floor area and access
Open floor area, columns, door widths and edges.
Surface specification
Required smoothness, slip resistance, floor use and finishing method.
Concrete and timing
Mix characteristics, setting conditions and the planned finishing window.
Operating requirements
Operator experience, fuel choice, lifting arrangements and wear parts.
Request an Equipment Quote
Share the destination country, application, preferred configuration and quantity. Add site photos or drawings where available.
