Agricultural & Rural Applications
Large agricultural storage floors
Open interior bays for grain storage support, produce handling and agricultural logistics.
Processing and packing buildings
Concrete floors where the floor specification calls for mechanical trowelling.
Equipment Features
Operator platform options
Compare upright, horizontal and dual-engine 100 series arrangements against access and operating preferences.
Hydraulic 120 configuration
The catalogue lists a 25.4 kW / 34 hp petrol engine, a 40 L fuel tank and a 598 kg machine weight.
Open-floor finishing
Twin finishing assemblies suit larger clear bays; plan edges and restricted areas separately.
Models & Specifications
Catalogue reference specifications. Confirm the final machine configuration and technical schedule with your quotation.

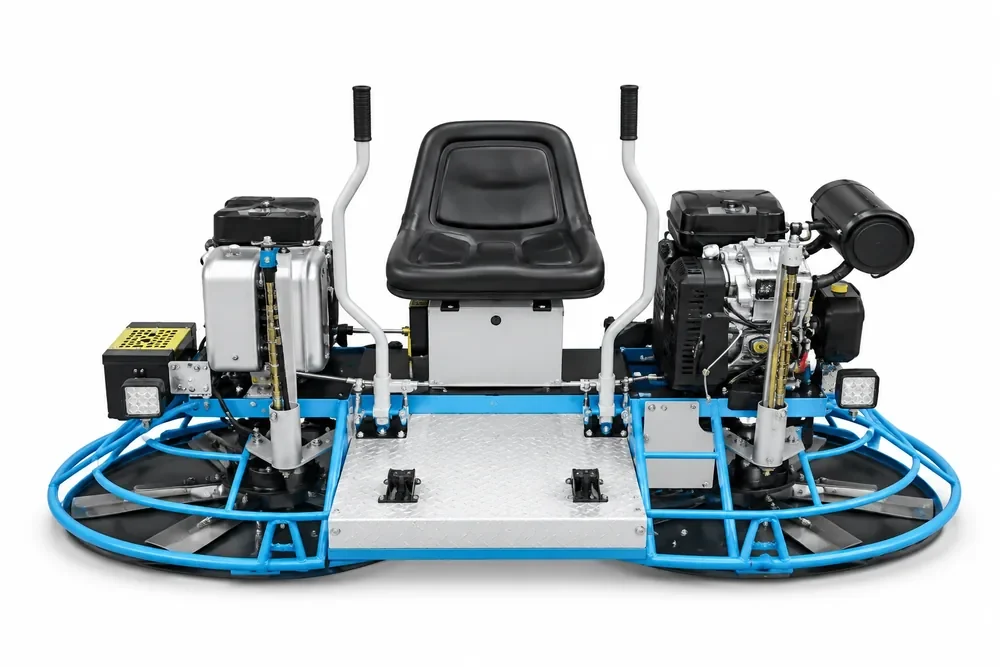

100 Series Ride-On Models
| Layout | Engine references | Disc diameter (mm) | Weight (kg) | Dimensions L × W × H (mm) |
|---|---|---|---|---|
| Upright | GX690 / 2V78 | 950 | 346 | 2,000 × 1,000 × 1,350 |
| Horizontal | 192 / GX690 | 1000 | 340 | 1,980 × 1,030 × 1,050 |
| Dual-engine | 168 / 173 | 1000 | 250 | 1,960 × 980 × 1,100 |
Engine references identify catalogue alternatives. Confirm fuel type and the exact engine in the quotation.
120 Hydraulic Ride-On
| Specification | Catalogue reference |
|---|---|
| Engine type | Four-stroke, air-cooled petrol |
| Rated power | 25.4 kW / 34 hp |
| Maximum engine speed | 3,600 rpm |
| Fuel tank | 40 L |
| Machine weight | 598 kg |
| Dimensions L × W × H | 2,540 × 1,240 × 1,480 mm |
3,600 rpm is the engine speed, not the finishing-disc speed.
Configuration Notes
The catalogue does not state a finishing diameter for the 120 hydraulic model. Its 3,600 rpm figure is engine speed. Confirm ventilation, actual engine specification and floor-finish requirements for the selected site.
Choosing Your Configuration
Floor area and access
Open floor area, columns, door widths and edges.
Surface specification
Required smoothness, slip resistance, floor use and finishing method.
Concrete and timing
Mix characteristics, setting conditions and the planned finishing window.
Operating requirements
Operator experience, fuel choice, lifting arrangements and wear parts.
Request an Equipment Quote
Share the destination country, application, preferred configuration and quantity. Add site photos or drawings where available.
