Select the beam or girder type

This page is the navigation hub for project-specific beam and girder moulds. Review the product page that matches the approved component section:

Production scenarios and design basis

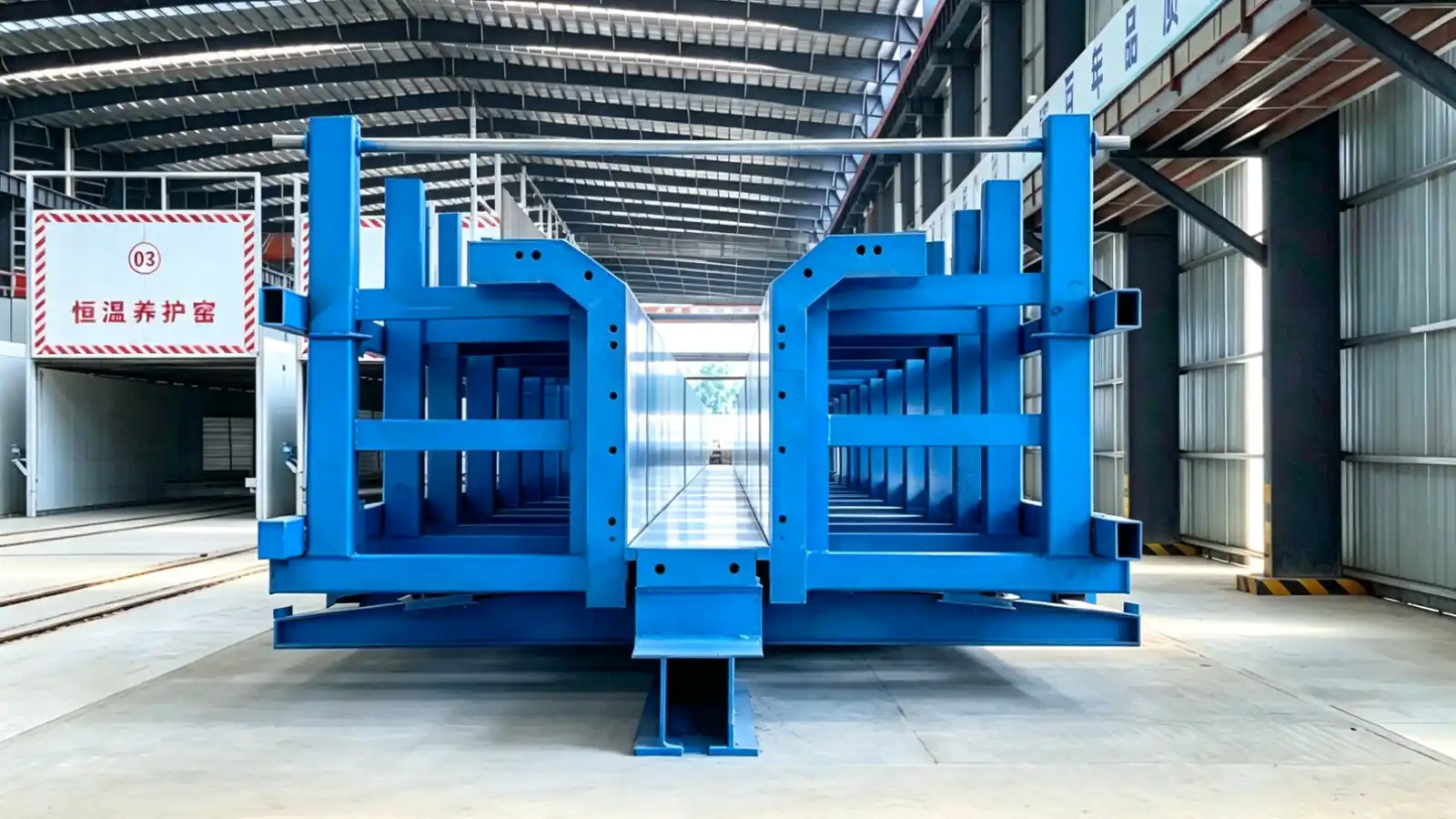

Beam and girder moulds are used in precast factories and project casting yards serving highways, urban viaducts, rail infrastructure and industrial construction. The mould arrangement is developed from the approved cross-section, length range, reinforcement and embedded-item layout, prestressing method where applicable, casting sequence and component-handling plan.

Is this mould range relevant to your project?

This range is intended for projects that have a defined beam or girder section and need a mould concept coordinated with repeat production. It may be relevant when:

  • The component family includes approved section or length variants
  • Prestressing, embedded items or replaceable end details affect the mould layout
  • Opening, demoulding and handling must fit an existing factory or casting yard
  • The buyer needs the mould, operating method and production interfaces reviewed together

Configuration directions

Configuration direction When it may be considered Main review focus
Conventional segmented mould Straightforward production sequences with suitable crane and labour access Panel division, locking, lifting and demoulding clearance
Mechanical or hydraulic opening Repeated opening and closing of larger side or internal forms Moving mass, stroke, safety interlocks and maintenance access
Movable or station-based arrangement The mould must work with defined production stations or transfer routes Rails, foundations, utilities, takt sequence and handling interfaces

Product performance and engineering features

  • Bottom, side and end forms configured to the approved component geometry
  • Stiffened support frames and defined locking positions based on the mould design basis
  • Replaceable end forms or inserts for an approved family of related components
  • Manual, mechanical or hydraulic opening selected for the agreed production sequence
  • Access provisions for preparation, concrete placement, inspection, cleaning and maintenance

Final component tolerances and acceptance criteria remain subject to the approved project documents, production controls and applicable standards.

Required project inputs

Approved component drawings, beam schedule, target casting cycle, dimensional tolerances, prestressing information where applicable, concrete placement and curing methods, production layout and handling plan.

About Realjet

Realjet develops project-specific equipment for precast concrete production and infrastructure construction. Our scope can connect process planning, mechanical design, steel fabrication, hydraulic or mechanical integration, workshop assembly, installation support and commissioning around the customer's production objective. Final dimensions, functions, interfaces and delivery boundaries are confirmed through technical review before manufacturing.
